• SS20DP/22B-0.375 Imperial EN8 Steel Spur Gear 22 Tooth 20 DP Bored 0.375 inch (H8)
1 1

SKU: SS20DP/22B-0.375_INCH

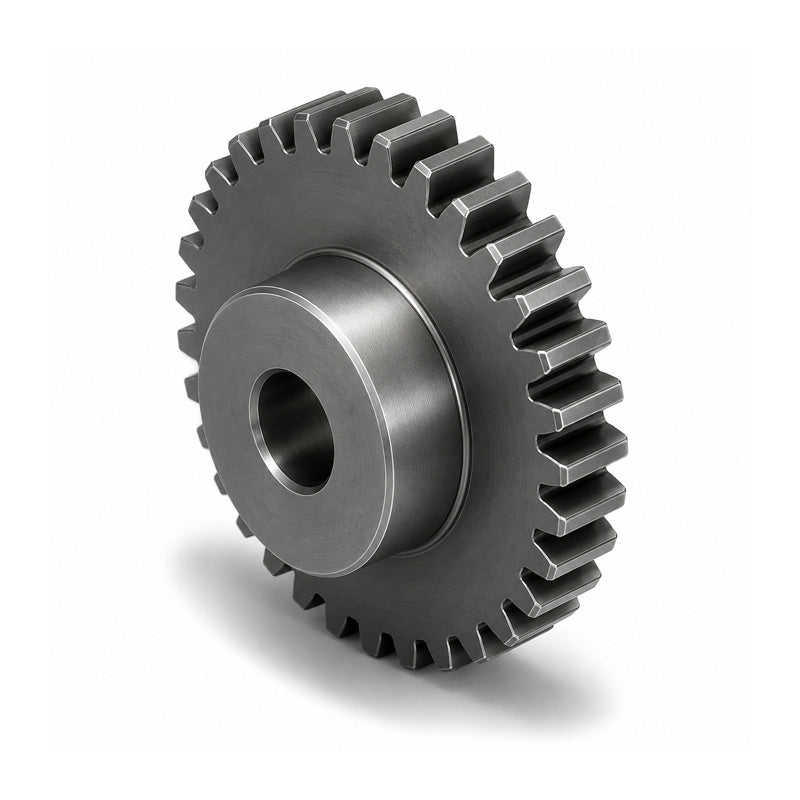

SS20DP/22B-0.375 Imperial EN8 Steel Spur Gear 22 Tooth 20 DP Bored 0.375 inch (H8)

SS20DP/22B-0.375 Imperial EN8 Steel Spur Gear 22 Tooth 20 DP Bored 0.375 inch (H8)
$59.75 ex VAT
$59.75 ex VAT
Sale Sold out

In stock

Price Break
5+ $40.02
9+ $37.78
19+ $37.33
29+ $36.88
49+ $36.43
74+ $35.98
99+ $33.73
199+ $33.28
249+ $32.83
499+ $32.38
999+ $31.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
9.53mm = 0.375 (3/8) inch
Number of Teeth:
22
Variant:
Tooth Profile B
Pitch Circle Diameter:
27.94mm = 1.1 inch
Gear Modulus:
20DP
Technical
Number of Teeth 22
Pitch (dp) 1.1 inch
Bore (H8) 0.375 inch
Hub / Boss (dm) 0.75 inch
Outside (de) 1.2 inch
Width (A) 0.75 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
