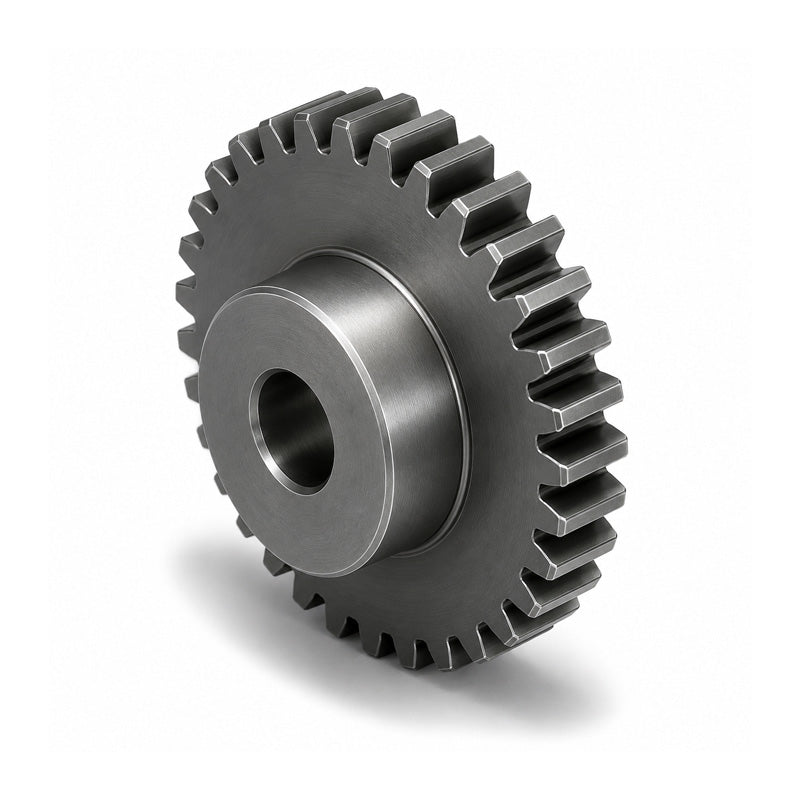

• SS20DP/32B-0.5 Imperial EN8 Steel Spur Gear 32 Tooth 20 DP Bored 0.5 inch (H8)
1 1

SKU: SS20DP/32B-0.5_INCH

SS20DP/32B-0.5 Imperial EN8 Steel Spur Gear 32 Tooth 20 DP Bored 0.5 inch (H8)

SS20DP/32B-0.5 Imperial EN8 Steel Spur Gear 32 Tooth 20 DP Bored 0.5 inch (H8)
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
5+ $44.61
9+ $42.10
19+ $41.60
29+ $41.10
49+ $40.60
74+ $40.10
99+ $37.59
199+ $37.09
249+ $36.59
499+ $36.09
999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
12.7mm = 0.5 (1/2) inch
Number of Teeth:
32
Variant:
Tooth Profile B
Pitch Circle Diameter:
40.64mm = 1.6 inch
Gear Modulus:
20DP
Technical
Number of Teeth 32
Pitch (dp) 1.6 inch
Bore (H8) 0.5 inch
Hub / Boss (dm) 1 inch
Outside (de) 1.7 inch
Width (A) 1 inch
Face Width (B) 0.375 inch
Modulus / Diametral Pitch DP 20 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
