SKU: SS20DP/35B-0.5_INCH

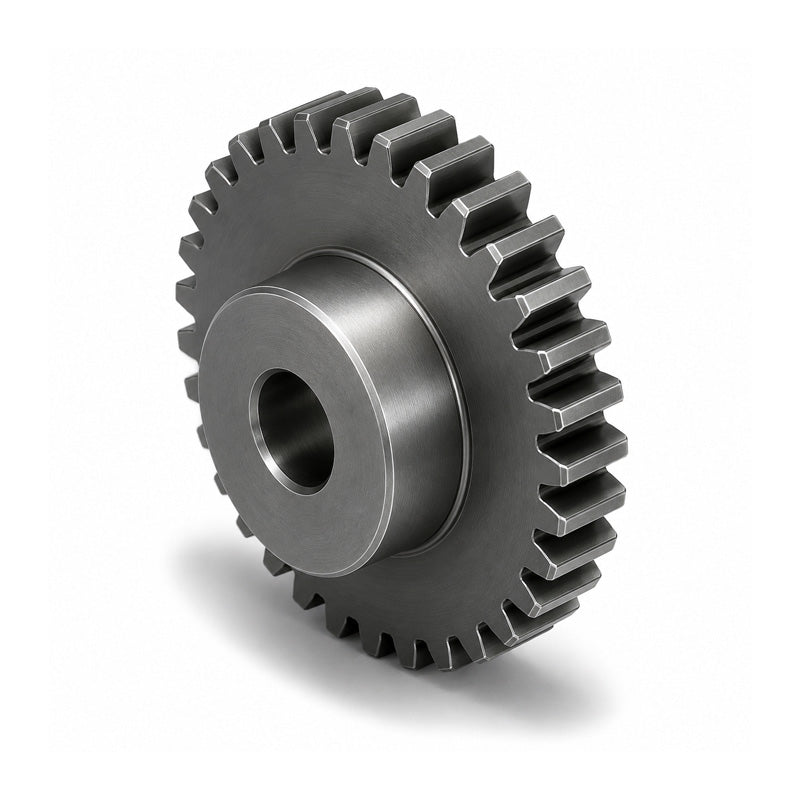

SS20DP/35B-0.5 Imperial EN8 Steel Spur Gear 35 Tooth 20 DP Bored 0.5 inch (H8)

Name: SS20DP/35B-0.5 Imperial EN8 Steel Spur Gear 35 Tooth 20 DP Bored 0.5 inch (H8)
Brand: Drive-Flex
SKU: SS20DP/35B-0.5_INCH
Price: 73.26 USD
Availability: InStock

$73.26 ex VAT

Sale Sold out

In stock

Price Break

5+ $49.07

9+ $46.31

19+ $45.76

29+ $45.21

49+ $44.66

74+ $44.11

99+ $41.35

199+ $40.80

249+ $40.25

499+ $39.70

999+ $38.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 12.7mm = 0.5 (1/2) inch
Number of Teeth:: 35
Variant:: Tooth Profile B
Pitch Circle Diameter:: 44.45mm = 1.75 (1-3/4) inch
Gear Modulus:: 20DP

Technical

Number of Teeth	35
Pitch (dp)	1.75 inch
Bore (H8)	0.5 inch
Hub / Boss (dm)	1 inch
Outside (de)	1.85 inch
Width (A)	1 inch
Face Width (B)	0.375 inch
Modulus / Diametral Pitch DP	20 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
