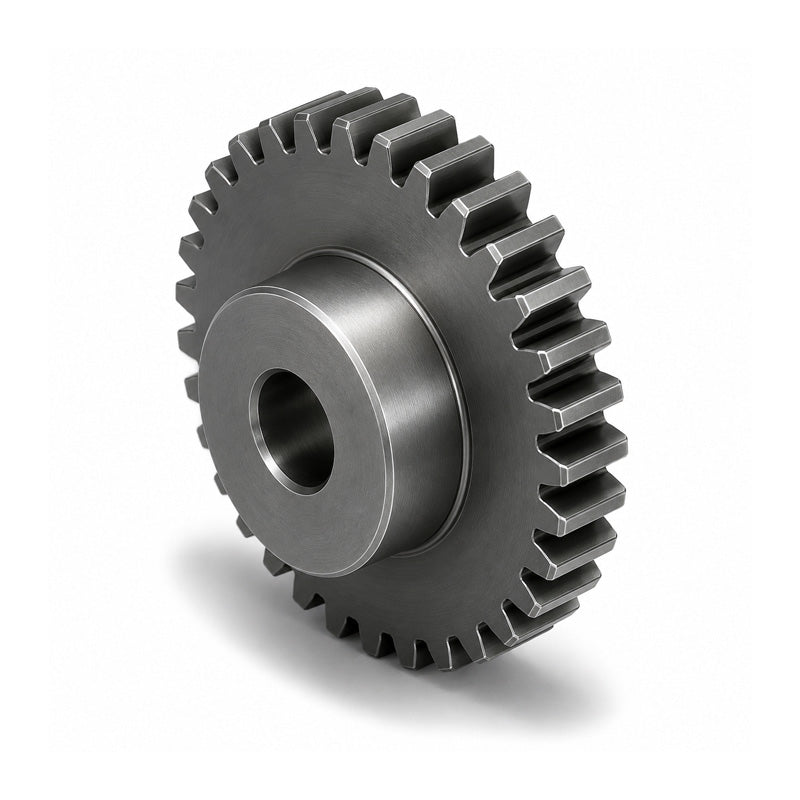

SS20DP/48B-0.5 Imperial EN8 Steel Spur Gear 48 Tooth 20 DP Bored 0.5 inch (H8)

Name: SS20DP/48B-0.5 Imperial EN8 Steel Spur Gear 48 Tooth 20 DP Bored 0.5 inch (H8)
Brand: Drive-Flex
SKU: SS20DP/48B-0.5_INCH
Price: 89.91 USD
Availability: InStock

$89.91 ex VAT

Sale Sold out

In stock

Price Break

5+ $60.22

9+ $56.84

19+ $56.16

29+ $55.49

49+ $54.81

74+ $54.13

99+ $50.75

199+ $50.07

249+ $49.40

499+ $48.72

999+ $47.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 12.7mm = 0.5 (1/2) inch
Number of Teeth:: 48
Variant:: Tooth Profile B
Pitch Circle Diameter:: 60.96mm = 2.4 inch
Gear Modulus:: 20DP

Technical

Number of Teeth	48
Pitch (dp)	2.4 inch
Bore (H8)	0.5 inch
Hub / Boss (dm)	1 inch
Outside (de)	2.5 inch
Width (A)	1 inch
Face Width (B)	0.375 inch
Modulus / Diametral Pitch DP	20 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
