SKU: SS20DP/60B-0.5_INCH

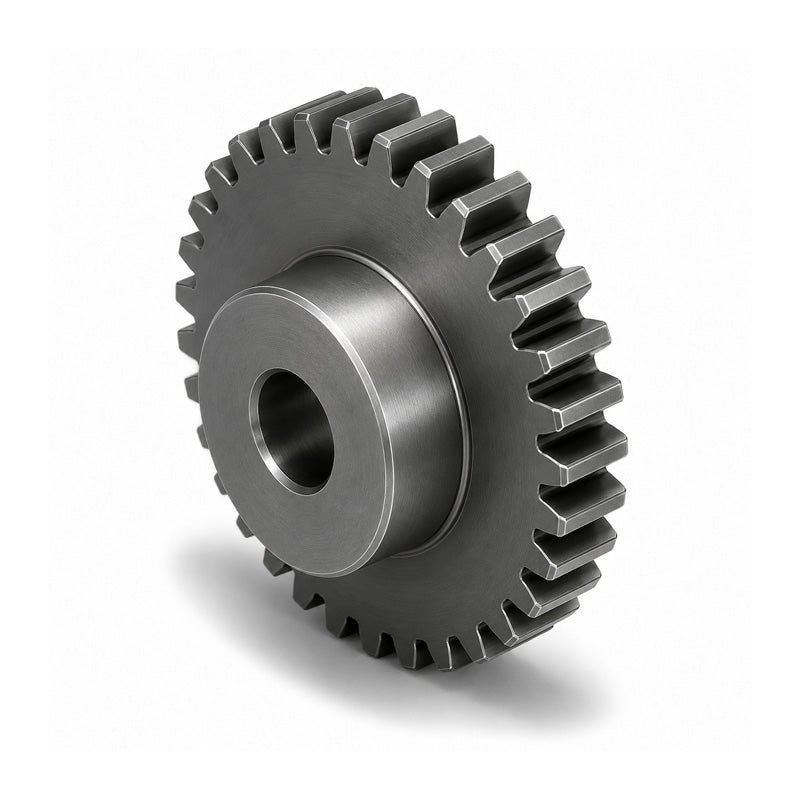

SS20DP/60B-0.5 Imperial EN8 Steel Spur Gear 60 Tooth 20 DP Bored 0.5 inch (H8)

Name: SS20DP/60B-0.5 Imperial EN8 Steel Spur Gear 60 Tooth 20 DP Bored 0.5 inch (H8)
Brand: Drive-Flex
SKU: SS20DP/60B-0.5_INCH
Price: 94.63 USD
Availability: InStock

$94.63 ex VAT

Sale Sold out

In stock

Price Break

5+ $63.38

9+ $59.82

19+ $59.11

29+ $58.40

49+ $57.69

74+ $56.97

99+ $53.41

199+ $52.70

249+ $51.99

499+ $51.28

999+ $49.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 12.7mm = 0.5 (1/2) inch
Number of Teeth:: 60
Variant:: Tooth Profile B
Pitch Circle Diameter:: 76.2mm = 3 inch
Gear Modulus:: 20DP

Technical

Number of Teeth	60
Pitch (dp)	3 inch
Bore (H8)	0.5 inch
Hub / Boss (dm)	1 inch
Outside (de)	3.1 inch
Width (A)	1 inch
Face Width (B)	0.375 inch
Modulus / Diametral Pitch DP	20 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
