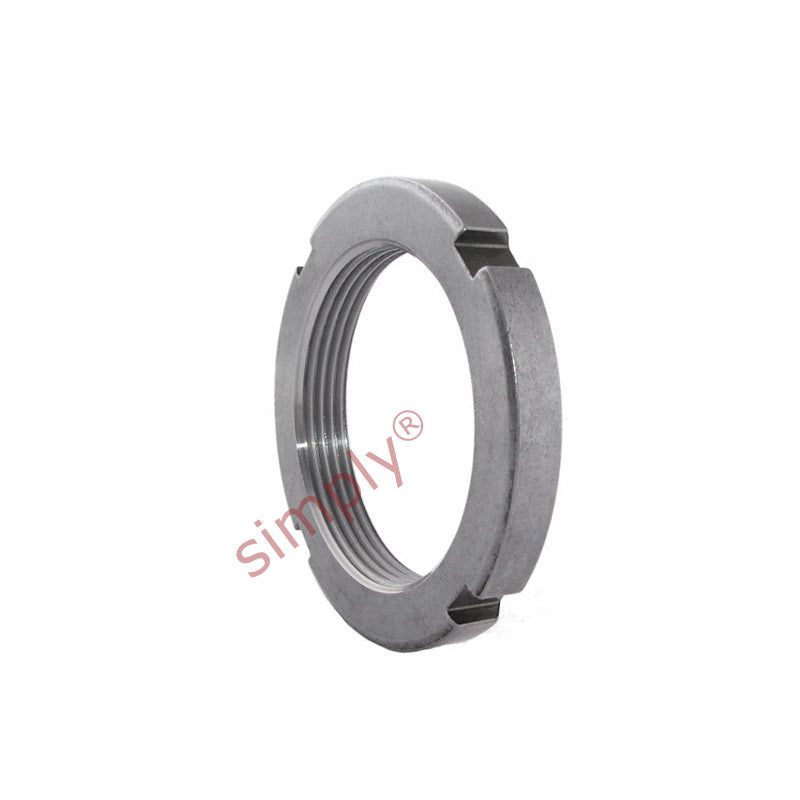

• SSKM4 Stainless Steel Lock Nut (Lock Washer Type) M20x1mm
1 1

SKU: SSKM4-EU

SSKM4 Stainless Steel Lock Nut (Lock Washer Type) M20x1mm

SSKM4 Stainless Steel Lock Nut (Lock Washer Type) M20x1mm
$15.67 ex VAT
$15.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $10.49
19+ $9.90
29+ $9.78
39+ $9.67
49+ $9.55
74+ $9.43
99+ $8.84
199+ $8.72
249+ $8.60
499+ $8.49
999+ $8.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M20x1
Technical
G M20x1mm
d1 26mm
d3 32mm
B 6mm
b 4mm
h 2mm
Static axial load capacity 24 kN
Weight 0.025 kg
Lock nut KM4
Appropriate locking washer MB4
Appropriate spanner HN4
