SKU: SSLFL.PL.202-16
SSLFLPL202-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 16mm Bore Stainless Insert - Allow 2-3 Days
SSLFLPL202-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 16mm Bore Stainless Insert - Allow 2-3 Days
Regular price
$26.48
ex VAT
Regular price
Sale price
$26.48
ex VAT
In stock
Price Break
3+
$19.73
4+
$18.93
9+
$18.53
19+
$17.94
49+
$17.54
99+
$16.54
499+
$13.95
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

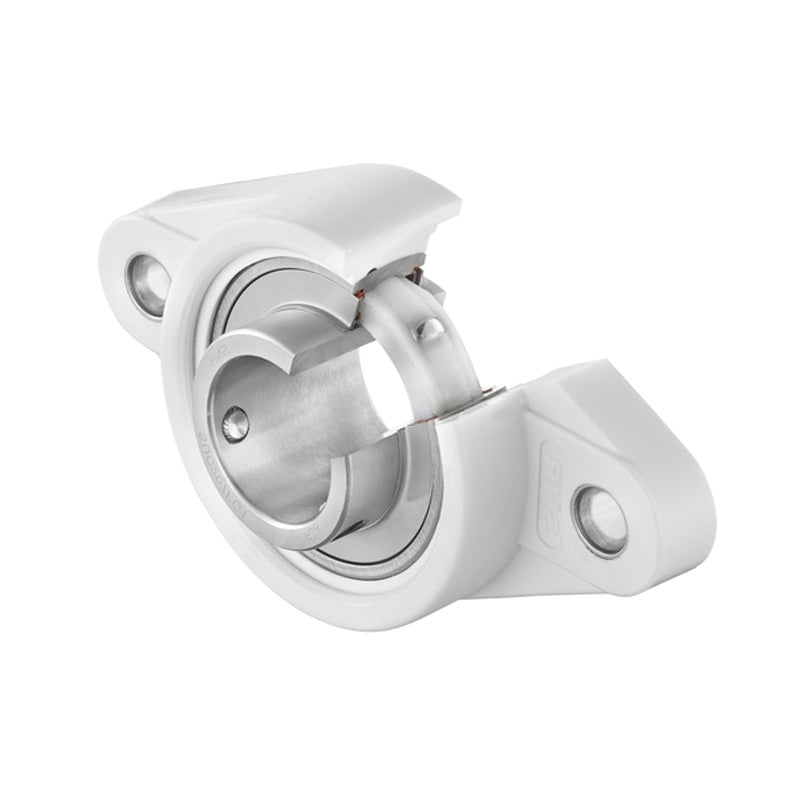

SSLFLPL Thermo Plastic Two Bolt Oval Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSLFL
- Bolt Hole Centres:
- 64mm
Technical
Technical

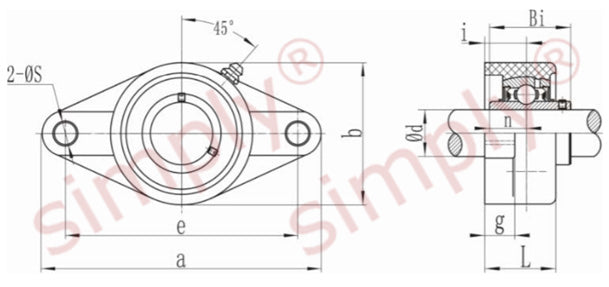

| d | 16mm |
|---|---|
| a | 81mm |
| e | 64mm |
| b | 56mm |
| g | L |
| s | 7mm |
| i | 8mm |
| Bi | 22mm |
| n | 6mm |
| Bolt | 6mm |
| Weight | 0.05kg |
| Temperature Range | -35 to 102 deg C |
