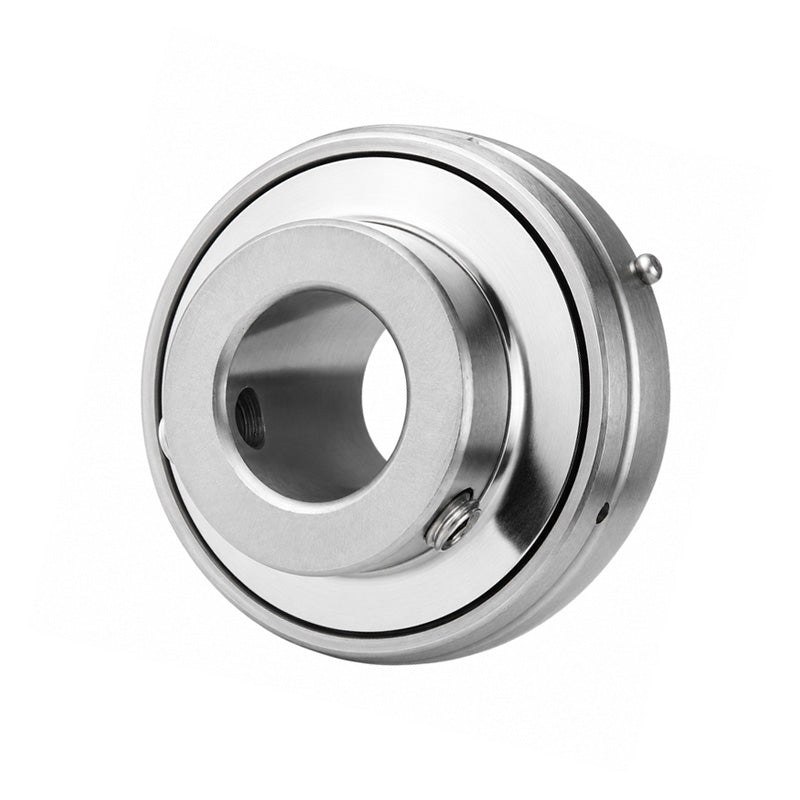

• SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
1 1

SKU: SSUC.205-14

SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia

SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
$18.00 ex VAT
$18.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.06
4+ $11.38
9+ $11.24
19+ $11.11
49+ $10.97
99+ $10.84
499+ $10.16
999+ $10.02
1999+ $9.89
2999+ $9.75
4999+ $9.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
52mm
Style:
SSUC
Technical
d 7/8 inch
D 52mm
Bi 34mm
Be 17mm
n 14.3mm
m 19.7mm
G 5.5mm
Grub screw 1/4"-28 UNF
Weight 0.23 kg
Dynamic load 1100 kgf
Static load 710 kgf
