SKU: SSUC.210-32

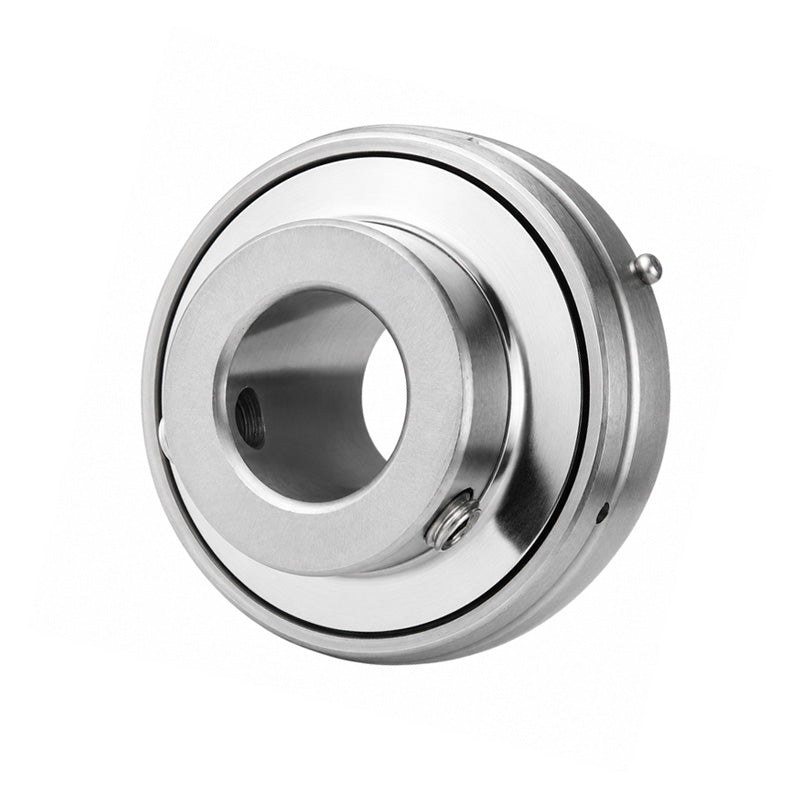

SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
$38.35
ex VAT
Regular price
Sale price
$38.35
ex VAT
In stock
Price Break
3+
$25.68
4+
$24.24
9+
$23.95
19+
$23.66
49+
$23.37
99+
$23.08
499+
$21.64
999+
$21.35
1999+
$21.06
2999+
$20.78
4999+
$20.20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- SSUC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
