SKU: SSUCF.216-50

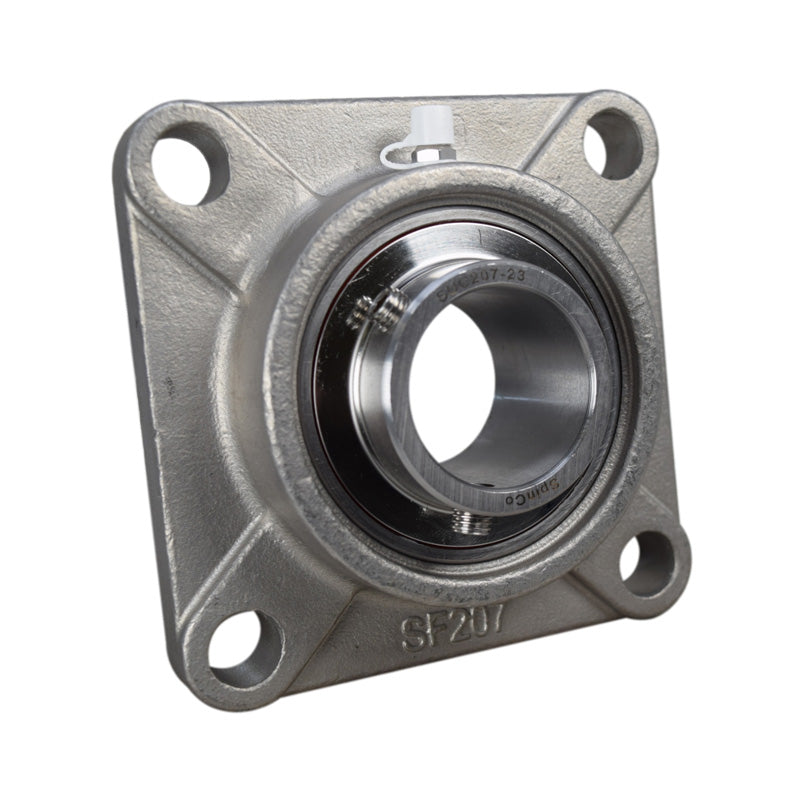

SSUCF216-50 Imperial Four Bolt Square Stainless Steel Flange Housing with 3-1/8 inch Bore Stainless Insert
SSUCF216-50 Imperial Four Bolt Square Stainless Steel Flange Housing with 3-1/8 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCF or SF Series Stainless Steel 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 79.38mm = 3.125 (3-1/8) inch
- Style:
- SSUCF
- Bolt Hole Centres:
- 165mm
Technical
Technical
| d | 3-1/8 inch |
|---|---|
| a | 208mm |
| e | 165mm |
| i | 35mm |
| g | 24mm |
| L | 59mm |
| S | 23mm |
| Z | 84.3mm |
| Bi | 82.6mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 7.5 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
