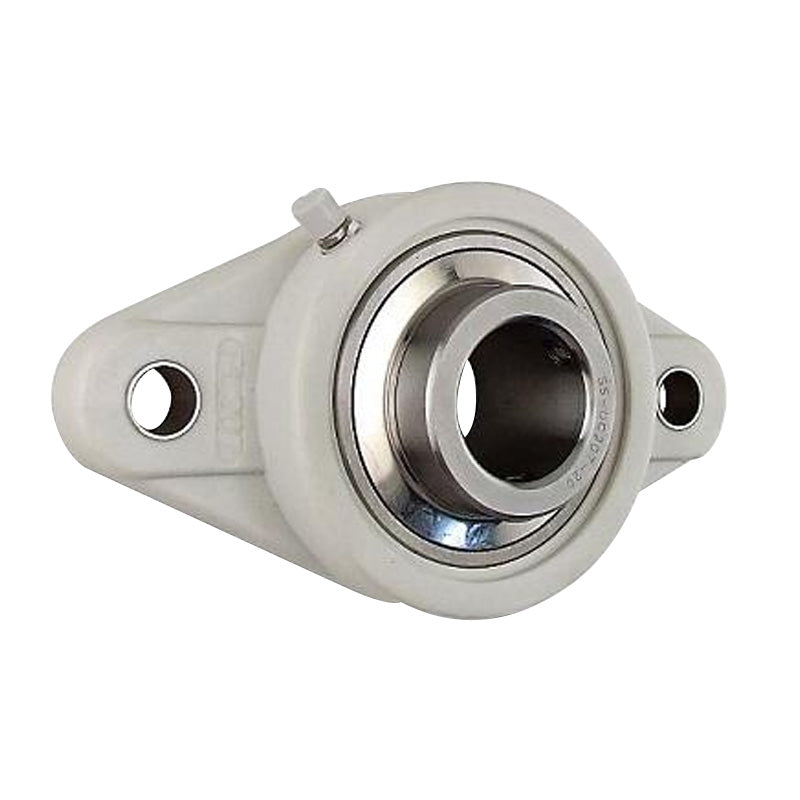

• SSUCFL202-10 Imperial Two Bolt Oval Stainless Steel Flange Housing with 5/8 inch Bore Stainless Insert
1 1

SKU: SSUCFL.202-10

SSUCFL202-10 Imperial Two Bolt Oval Stainless Steel Flange Housing with 5/8 inch Bore Stainless Insert

SSUCFL202-10 Imperial Two Bolt Oval Stainless Steel Flange Housing with 5/8 inch Bore Stainless Insert
$51.87 ex VAT
$51.87 ex VAT
Sale Sold out

Equivalent to: SFT5/8

In stock

Price Break
3+ $34.74
4+ $32.79
9+ $32.40
19+ $32.01
49+ $31.62
99+ $31.23
499+ $29.28
999+ $28.89
1999+ $28.50
2999+ $28.11
4999+ $27.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Style:
SSUCFL
Bolt Hole Centres:
90mm
Technical
d 5/8 inch
a 113mm
e 90mm
i 15mm
g 11mm
L 25.5mm
S 12mm
b 60mm
Z 33.3mm
Bi 31.0mm
n 12.7mm
Bolt 10mm
Weight 0.49 kg
Dynamic load 1000 kgf
Static load 630 kgf
Rec max speed 8800 rpm
