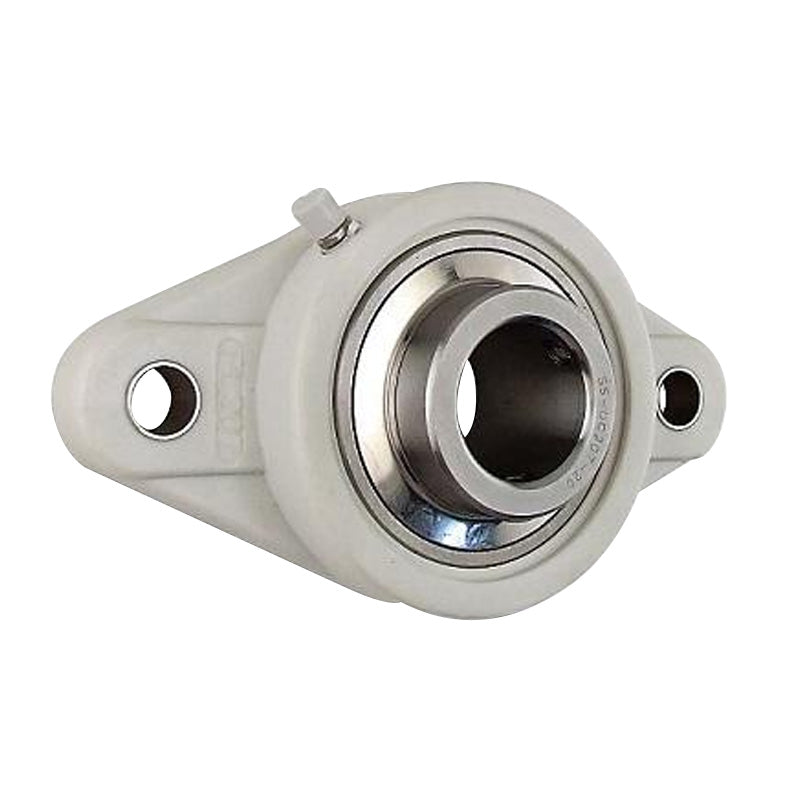

• SSUCFL206-20 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/4 inch Bore Stainless Insert
1 1

SKU: SSUCFL.206-20

SSUCFL206-20 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/4 inch Bore Stainless Insert

SSUCFL206-20 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/4 inch Bore Stainless Insert
$79.12 ex VAT
$79.12 ex VAT
Sale Sold out

In stock

Price Break
3+ $53.00
4+ $50.02
9+ $49.42
19+ $48.83
49+ $48.23
99+ $47.64
499+ $44.66
999+ $44.07
1999+ $43.47
2999+ $42.87
4999+ $41.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SSUCFL
Bolt Hole Centres:
117mm
Technical
d 1-1/4 inch
a 148mm
e 117mm
i 18mm
g 13mm
L 31mm
S 16mm
b 80mm
Z 40.2mm
Bi 38.1mm
n 15.9mm
Bolt 14mm
Weight 0.94 kg
Dynamic load 1520 kgf
Static load 1020 kgf
