• SSUCFL208-24 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/2 inch Bore Stainless Insert
1 1

SKU: SSUCFL.208-24

SSUCFL208-24 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/2 inch Bore Stainless Insert

SSUCFL208-24 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/2 inch Bore Stainless Insert
$106.73 ex VAT
$106.73 ex VAT
Sale Sold out

Equivalent to: SFT1-1/2

In stock

Price Break
3+ $71.49
4+ $67.47
9+ $66.67
19+ $65.87
49+ $65.06
99+ $64.26
499+ $60.24
999+ $59.44
1999+ $58.64
2999+ $57.83
4999+ $56.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

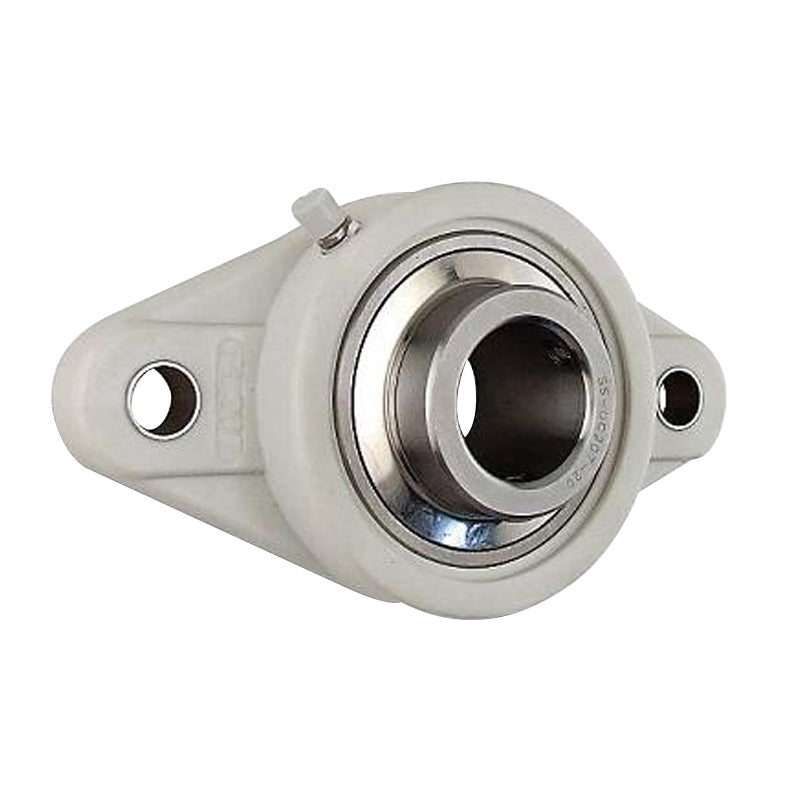

SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
SSUCFL
Bolt Hole Centres:
144mm
Technical
d 1-1/2 inch
a 175mm
e 144mm
i 21mm
g 14mm
L 36mm
S 16mm
b 100mm
Z 51.2mm
Bi 49.2mm
n 19.0mm
Bolt 16mm
Weight 1.6 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
