• SSUCP203 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 17mm Bore Stainless Insert
1 1

SKU: SSUCP.203

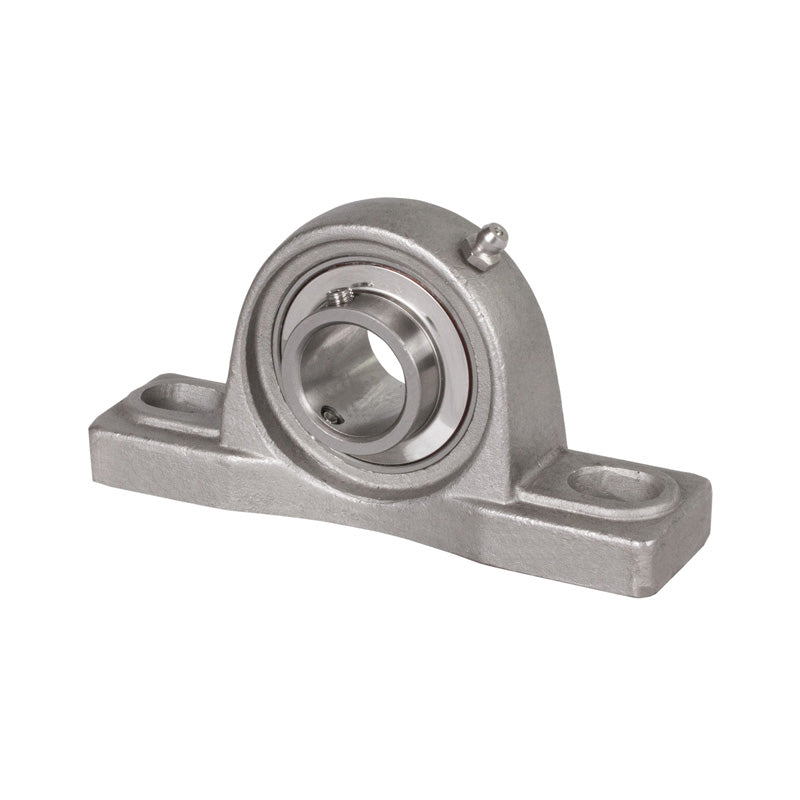

SSUCP203 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 17mm Bore Stainless Insert

SSUCP203 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 17mm Bore Stainless Insert
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

Equivalent to: NP17

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Style:
SSUCP
Bolt Hole Centres:
96mm
Technical
d 17mm
h 30.2mm
a 127mm
e 96mm
b 38mm
s2 19mm
s1 13mm
g 15mm
w 62mm
B1 31mm
n 12.7mm
Bolt 10mm
Weight 0.63 kg
Dynamic load 760 kgf
Static load 450 kgf
Rec max speed 8800 rpm
