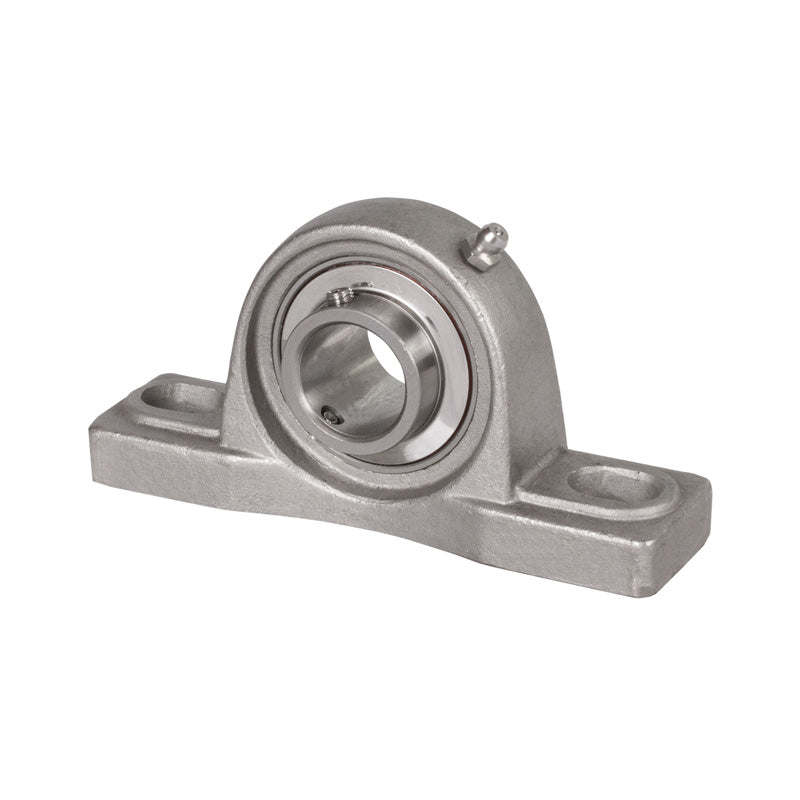

• SSUCP204-12 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
1 1

SKU: SSUCP.204-12

SSUCP204-12 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert

SSUCP204-12 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
$52.66 ex VAT
$52.66 ex VAT
Sale Sold out

Equivalent to: NP3/4

In stock

Price Break
3+ $35.27
4+ $33.29
9+ $32.89
19+ $32.49
49+ $32.10
99+ $31.70
499+ $29.72
999+ $29.32
1999+ $28.93
2999+ $28.53
4999+ $27.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
SSUCP
Bolt Hole Centres:
96mm
Technical
d 3/4 inch
h 33.3mm
a 127mm
e 96mm
b 38mm
s2 19mm
s1 13mm
g 15mm
w 62mm
B1 31mm
n 12.7mm
Bolt 10mm
Weight 0.63 kg
Dynamic load 1000 kgf
Static load 630 kgf
Rec max speed 7450 rpm
