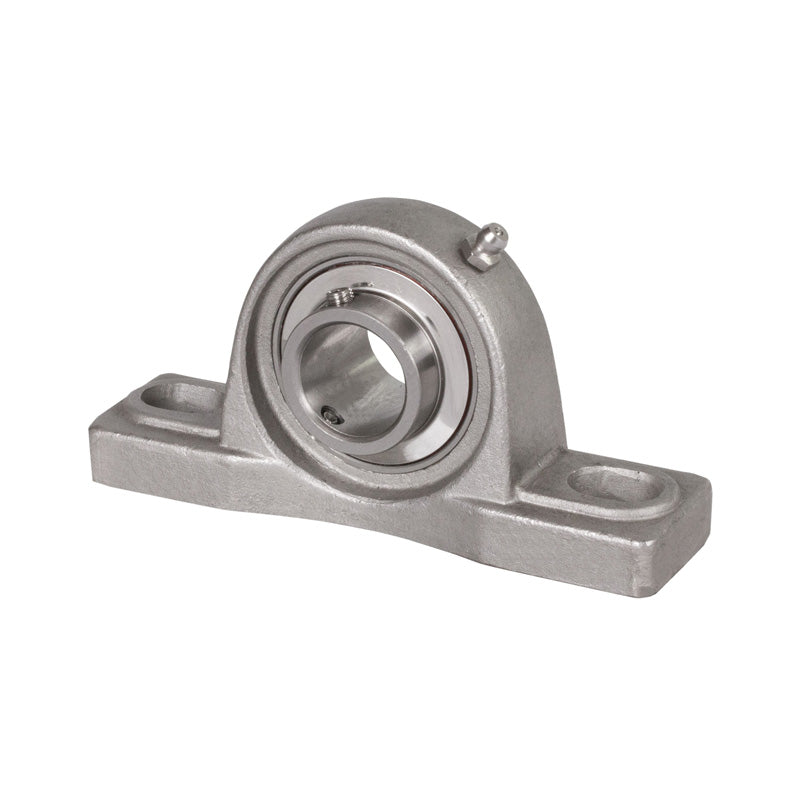

• SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
1 1

SKU: SSUCP.205-15

SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert

SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

Equivalent to: NP15/16

In stock

Price Break
3+ $48.04
4+ $45.34
9+ $44.80
19+ $44.26
49+ $43.72
99+ $43.18
499+ $40.48
999+ $39.94
1999+ $39.40
2999+ $38.86
4999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Style:
SSUCP
Bolt Hole Centres:
105mm
Technical
d 15/16 inch
h 36.5mm
a 140mm
e 105mm
b 38mm
s2 19mm
s1 13mm
g 16mm
w 70mm
B1 34mm
n 14.3mm
Bolt 10mm
Weight 0.79 kg
Dynamic load 1100 kgf
Static load 710 kgf
Rec max speed 6250 rpm
