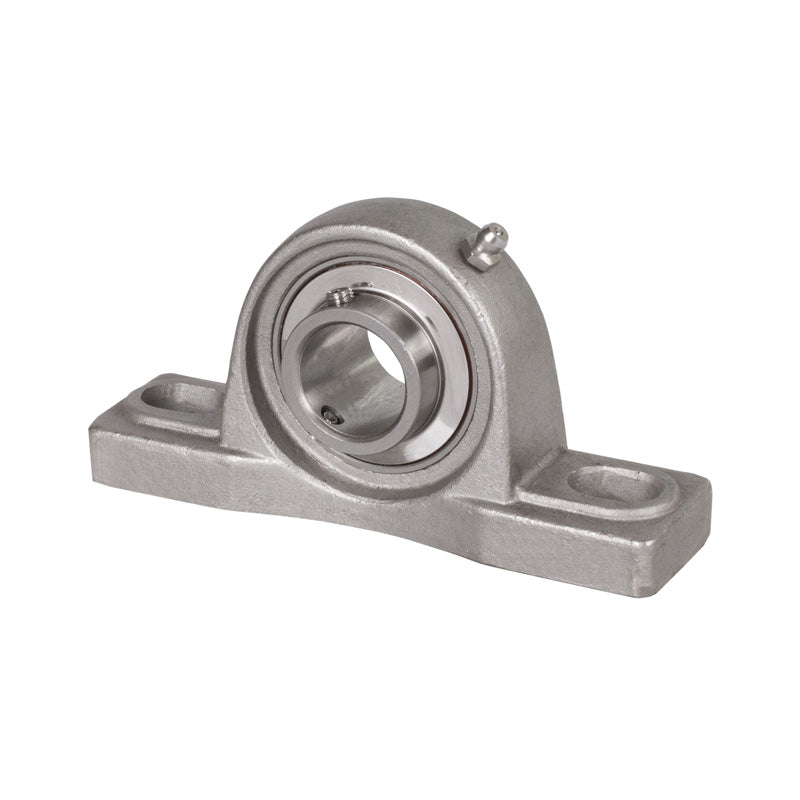

• SSUCP209-28 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Stainless Insert
1 1

SKU: SSUCP.209-28

SSUCP209-28 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Stainless Insert

SSUCP209-28 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Stainless Insert
$131.51 ex VAT
$131.51 ex VAT
Sale Sold out

Equivalent to: NP1.3/4

In stock

Price Break
3+ $88.09
4+ $83.14
9+ $82.15
19+ $81.16
49+ $80.17
99+ $79.18
499+ $74.24
999+ $73.25
1999+ $72.26
2999+ $71.27
4999+ $69.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
SSUCP
Bolt Hole Centres:
146mm
Technical
d 1-3/4 inch
h 54mm
a 190mm
e 146mm
b 54mm
s2 21mm
s1 17mm
g 20mm
w 106mm
B1 49.2mm
n 19mm
Bolt 14mm
Weight 2.2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 3700 rpm
