SKU: SSUCP.217

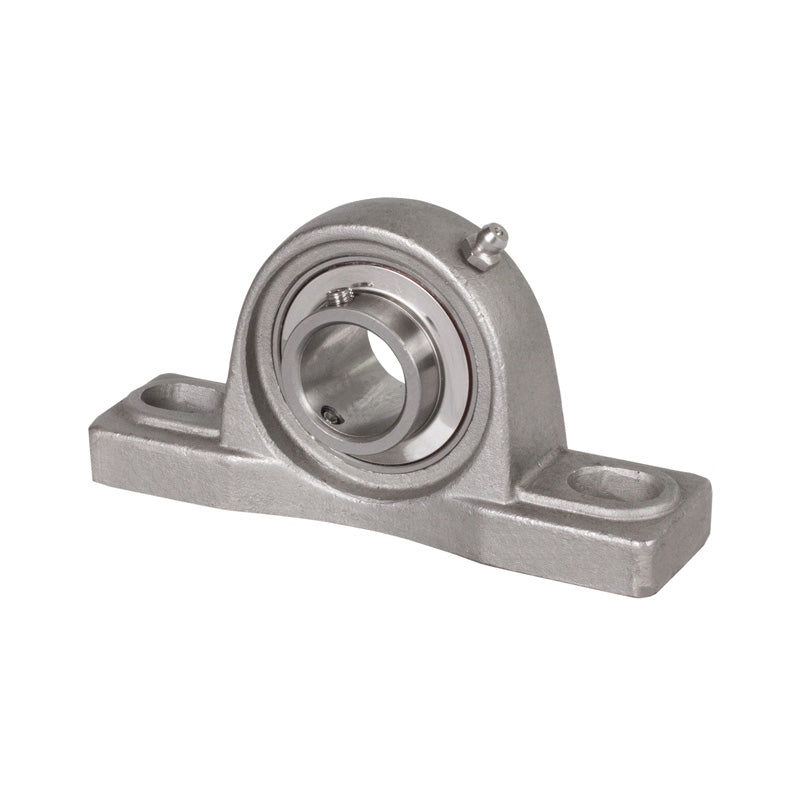

SSUCP217 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 85mm Bore Stainless Insert
SSUCP217 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 85mm Bore Stainless Insert
Equivalent to: NP85
Out of stock
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 247mm
Technical
Technical
| d | 85mm |
|---|---|
| h | 95.2mm |
| a | 310mm |
| e | 247mm |
| b | 83mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 32mm |
| w | 187mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt | 20mm |
| Weight | 11.5 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
| Rec max speed | 2000 rpm |
