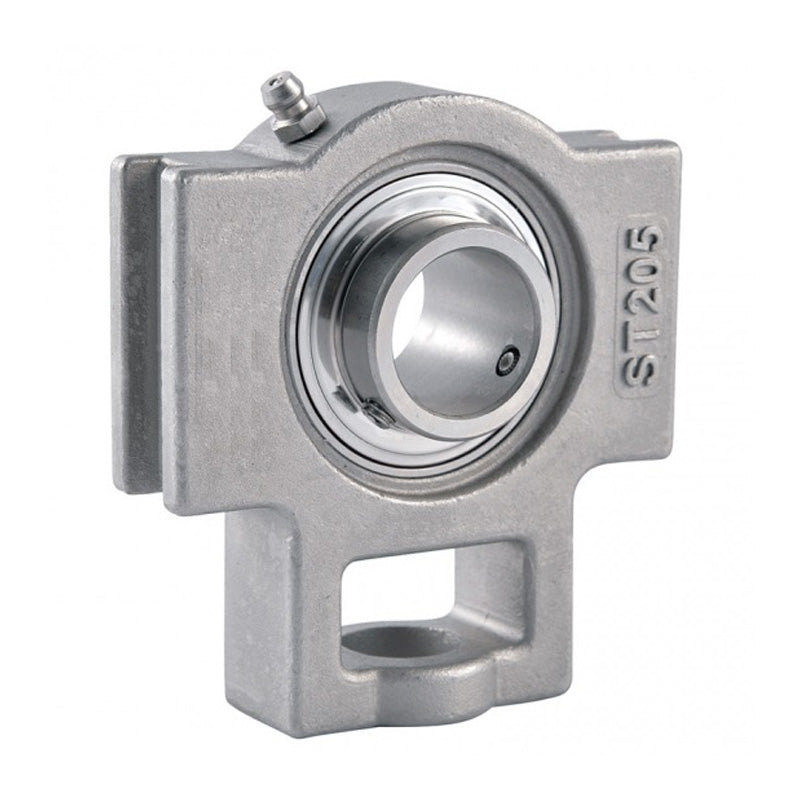

• SSUCT202 Metric Stainless Steel Take Up Unit Housing with 15mm Bore Stainless Insert
1 1

SKU: SSUCT.202

SSUCT202 Metric Stainless Steel Take Up Unit Housing with 15mm Bore Stainless Insert

SSUCT202 Metric Stainless Steel Take Up Unit Housing with 15mm Bore Stainless Insert
$76.04 ex VAT
$76.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.94
4+ $48.08
9+ $47.50
19+ $46.93
49+ $46.36
99+ $45.79
499+ $42.92
999+ $42.35
1999+ $41.78
2999+ $41.21
4999+ $40.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Style:
SSUCT
Technical
d 15mm
o 16mm
g 10mm
p 51mm
q 32mm
s 19mm
b 51mm
K 12mm
e 76mm
a 89mm
w 94mm
j 32mm
l 21mm
h 61mm
Bi 31mm
n 12.7mm
Weight 0.79 kg
Dynamic load 1000 kgf
Static load 630 kgf
