• RHP ST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
1 1

SKU: ST1.1/4-RHP

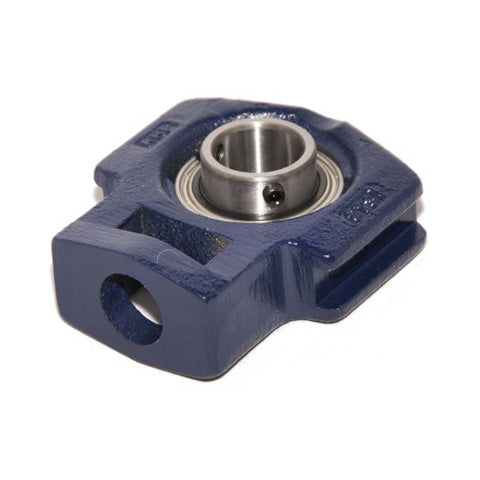

RHP ST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
$86.66 ex VAT
$86.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.04
20+ $54.78
30+ $54.13
40+ $53.48
50+ $52.83
75+ $52.18
100+ $48.91
200+ $48.26
250+ $47.61
500+ $46.96
1000+ $45.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
ST
Technical
Bore 1-1/4 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
