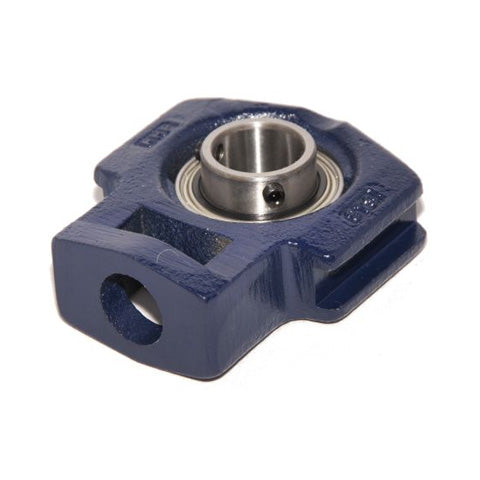

• RHP ST1-1/4R Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
1 1

SKU: ST1.1/4R-RHP

RHP ST1-1/4R Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4R Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
$75.44 ex VAT
$75.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.53
20+ $47.69
30+ $47.12
40+ $46.56
50+ $45.99
75+ $45.42
100+ $42.58
200+ $42.01
250+ $41.45
500+ $40.88
1000+ $39.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
ST
Technical
Bore 1-1/4 inch
L 4.547 inch
L1 2.823 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
