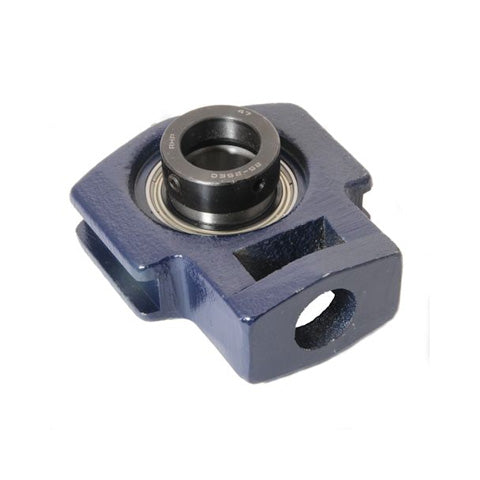

• RHP ST1-3/16EC Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
1 1

SKU: ST1.3/16EC-RHP

RHP ST1-3/16EC Cast Iron Take Up Unit and 1-3/16 inch Bore Insert

RHP ST1-3/16EC Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
$78.18 ex VAT
$78.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.36
20+ $49.42
30+ $48.83
40+ $48.25
50+ $47.66
75+ $47.07
100+ $44.13
200+ $43.54
250+ $42.95
500+ $42.36
1000+ $41.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
ST
Technical
Bore 1-3/16 inch
L 4.547 inch
L1 2.823 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B2 1.405 inch
s1 0.356 inch
d2 1.75 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-3/16ECG+insonly">1230-1-3/16ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
