SKU: ST1.3/4A-RHP

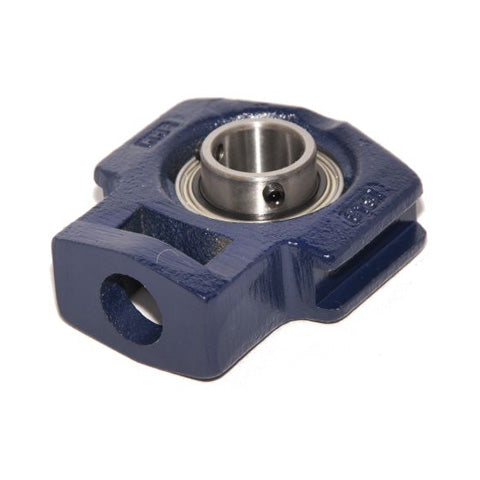

RHP ST1-3/4A Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
RHP ST1-3/4A Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- ST
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 5.787 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B1 | 1.621 inch |
| s1 | 0.435 inch |
| d1 | 2.256 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-3/4G+insonly">1245-1-3/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
