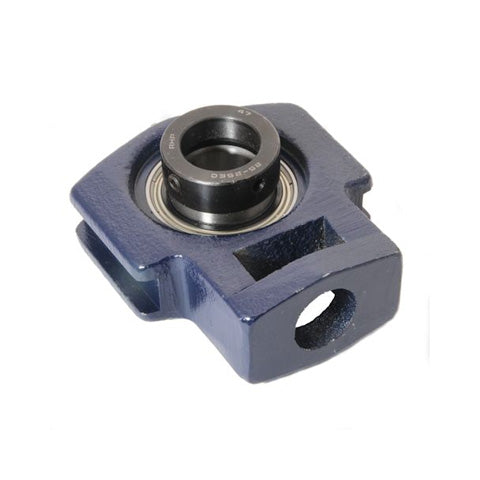

• RHP ST1-3/4EC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
1 1

SKU: ST1.3/4EC-RHP

RHP ST1-3/4EC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert

RHP ST1-3/4EC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
$126.15 ex VAT
$126.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $84.50
20+ $79.75
30+ $78.80
40+ $77.85
50+ $76.90
75+ $75.95
100+ $71.21
200+ $70.26
250+ $69.31
500+ $68.36
1000+ $66.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
ST
Technical
Bore 1-3/4 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B2 1.718 inch
s1 0.435 inch
d2 2.5 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1245-1-3/4ECG+insonly">1245-1-3/4ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
