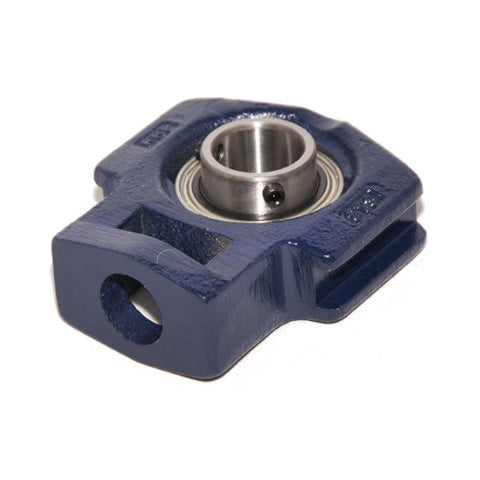

• RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
1 1

SKU: ST1.5/8-RHP

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
$114.15 ex VAT
$114.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.46
20+ $72.16
30+ $71.30
40+ $70.44
50+ $69.59
75+ $68.73
100+ $64.43
200+ $63.57
250+ $62.71
500+ $61.85
1000+ $60.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
ST
Technical
Bore 1-5/8 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
