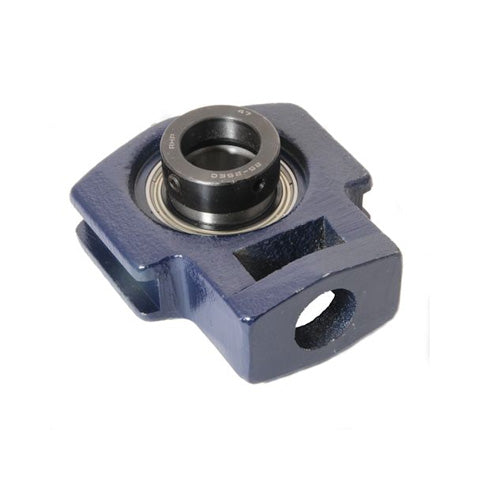

• RHP ST1-7/16EC Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
1 1

SKU: ST1.7/16EC-RHP

RHP ST1-7/16EC Cast Iron Take Up Unit and 1-7/16 inch Bore Insert

RHP ST1-7/16EC Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
$90.52 ex VAT
$90.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.64
20+ $57.23
30+ $56.55
40+ $55.87
50+ $55.19
75+ $54.51
100+ $51.10
200+ $50.42
250+ $49.74
500+ $49.06
1000+ $47.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
ST
Technical
Bore 1-7/16 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-7/16ECG+insonly">1235-1-7/16ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
