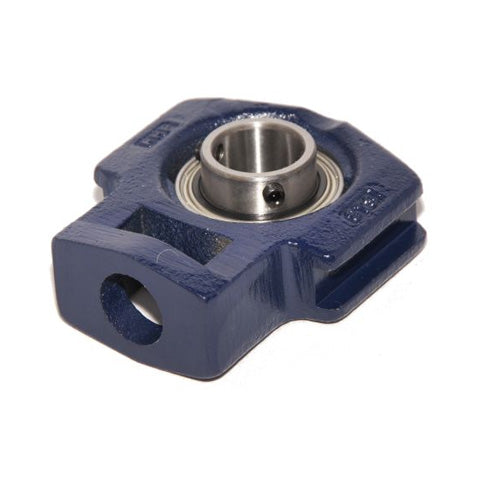

• RHP ST2-15/16 Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
1 1

SKU: ST2.15/16-RHP

RHP ST2-15/16 Cast Iron Take Up Unit and 2-15/16 inch Bore Insert

RHP ST2-15/16 Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
$396.78 ex VAT
$396.78 ex VAT
Sale Sold out

In stock

Price Break
10+ $265.78
20+ $250.84
30+ $247.86
40+ $244.87
50+ $241.89
75+ $238.90
100+ $223.97
200+ $220.98
250+ $218.00
500+ $215.01
1000+ $209.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
ST
Technical
Bore 2-15/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B 3.062 inch
s 1.314 inch
d1 3.622 inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-15/16G+insonly">1075-2-15/16G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
