SKU: ST2.15/16DEC-RHP

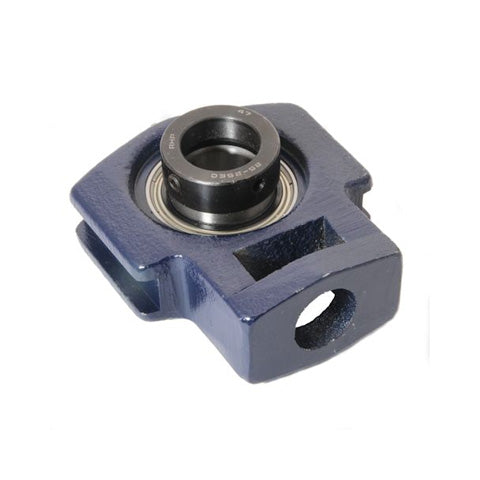

RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert

RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
Regular price $479.86 ex VAT
Regular price Sale price $479.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $321.42
20+ $303.37
30+ $299.75
40+ $296.14
50+ $292.53
75+ $288.92
100+ $270.86
200+ $267.25
250+ $263.64
500+ $260.03
1000+ $252.80
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-15/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B3 3.611 inch
s2 1.471 inch
d2 4 inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
