SKU: ST2R-RHP

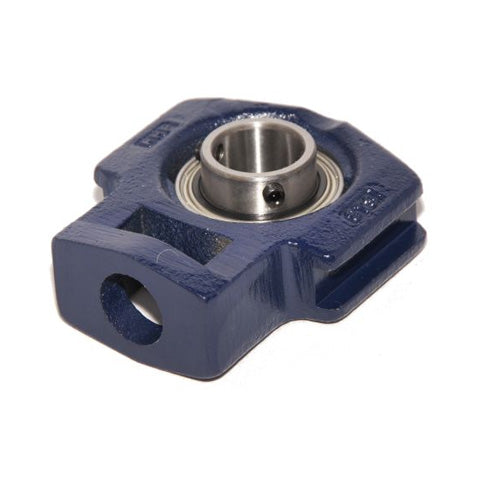

RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert

Name: RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert
Brand: RHP
SKU: ST2R-RHP
Price: 125.67 USD
Availability: InStock

$125.67 ex VAT

Sale Sold out

In stock

Price Break

10+ $84.18

20+ $79.45

30+ $78.50

40+ $77.56

50+ $76.61

75+ $75.67

100+ $70.94

200+ $69.99

250+ $69.05

500+ $68.10

1000+ $66.21

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	2 inch
L	5.945 inch
L1	3.563 inch
L2	0.61 inch
L3	0.807 inch
L4	3.209 inch
L5	1.988 inch
H	4.646 inch
H1	3.248 inch
H2	1.949 inch
H3	3.976 inch
N	1.142 inch
A	1.949 inch
A1	1.457 inch
A2	0.689 inch
B	2.031 inch
s	0.752 inch
d1	2.449 inch
Dynamic load	35000 N
Static load	23200 N
Rec max speed	3400 rpm
Weight	2.8 kg
Insert	<a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
