SKU: ST3.1/4-RHP

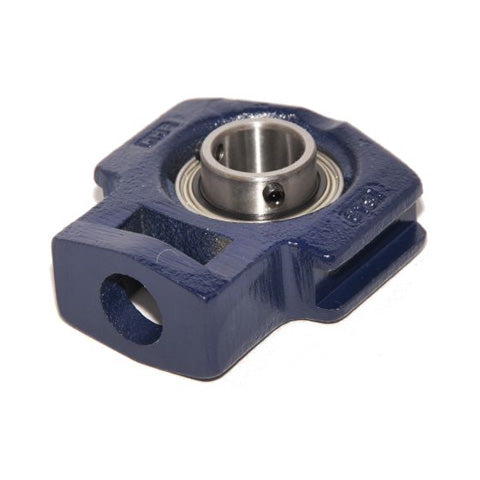

RHP ST3-1/4 Cast Iron Take Up Unit and 3-1/4 inch Bore Insert
RHP ST3-1/4 Cast Iron Take Up Unit and 3-1/4 inch Bore Insert
Regular price
$889.06
ex VAT
Regular price
Sale price
$889.06
ex VAT
In stock
Price Break
10+
$595.52
20+
$562.06
30+
$555.37
40+
$548.68
50+
$541.99
75+
$535.30
100+
$501.84
200+
$495.15
250+
$488.46
500+
$481.77
1000+
$468.39
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- ST
Technical
Technical
| Bore | 3-1/4 inch |
|---|---|
| L | 10.256 inch |
| L1 | 6.378 inch |
| L2 | 1.122 inch |
| L3 | 1.496 inch |
| L4 | 5.512 inch |
| L5 | 3.562 inch |
| H | 7.815 inch |
| H1 | 4.882 inch |
| H2 | 2.874 inch |
| H3 | 6.811 inch |
| N | 1.87 inch |
| A | 3.13 inch |
| A1 | 2.697 inch |
| A2 | 1.813 inch |
| B | 3.375 inch |
| s | 1.346 inch |
| d1 | 4.174 inch |
| Dynamic load | 83000 N |
| Static load | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 13.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a> |
| Casting group | 14 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
