SKU: ST3/4-RHP

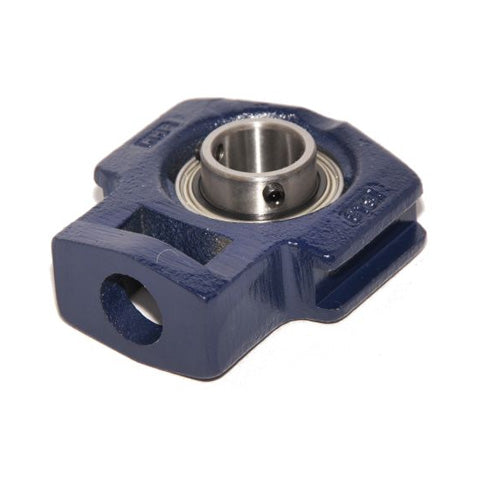

RHP ST3/4 Cast Iron Take Up Unit and 3/4 inch Bore Insert
RHP ST3/4 Cast Iron Take Up Unit and 3/4 inch Bore Insert
Regular price
$53.41
ex VAT
Regular price
Sale price
$53.41
ex VAT
In stock
Price Break
10+
$35.78
20+
$33.77
30+
$33.36
40+
$32.96
50+
$32.56
75+
$32.16
100+
$30.15
200+
$29.75
250+
$29.34
500+
$28.94
1000+
$28.14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- ST
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 3.76 inch |
| L1 | 2.441 inch |
| L2 | 0.453 inch |
| L3 | 0.63 inch |
| L4 | 1.988 inch |
| L5 | 1.437 inch |
| H | 3.484 inch |
| H1 | 2.303 inch |
| H2 | 1.26 inch |
| H3 | 2.992 inch |
| N | 0.886 inch |
| A | 1.417 inch |
| A1 | 1.083 inch |
| A2 | 0.531 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
