• RHP ST3/4EC Cast Iron Take Up Unit and 3/4 inch Bore Insert
1 1

SKU: ST3/4EC-RHP

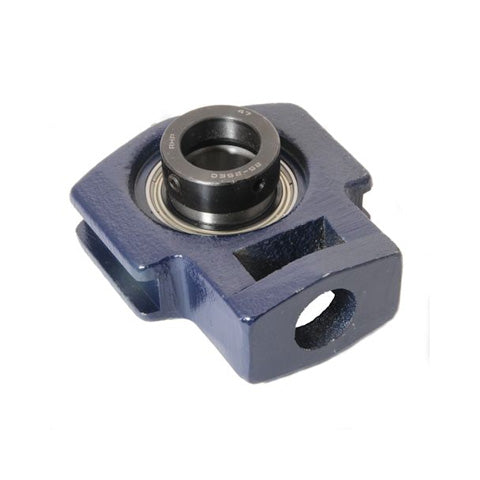

RHP ST3/4EC Cast Iron Take Up Unit and 3/4 inch Bore Insert

RHP ST3/4EC Cast Iron Take Up Unit and 3/4 inch Bore Insert
$57.08 ex VAT
$57.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.23
20+ $36.09
30+ $35.66
40+ $35.23
50+ $34.80
75+ $34.37
100+ $32.22
200+ $31.79
250+ $31.36
500+ $30.93
1000+ $30.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
ST
Technical
Bore 3/4 inch
L 3.76 inch
L1 2.441 inch
L2 0.453 inch
L3 0.63 inch
L4 1.988 inch
L5 1.437 inch
H 3.484 inch
H1 2.303 inch
H2 1.26 inch
H3 2.992 inch
N 0.886 inch
A 1.417 inch
A1 1.083 inch
A2 0.531 inch
B2 1.217 inch
s1 0.298 inch
d2 1.311 inch
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1220-3/4ECG+insonly">1220-3/4ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
