SKU: ST30A-RHP

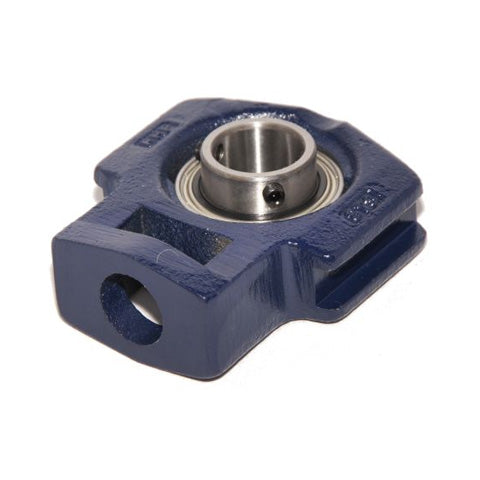

RHP ST30A Cast Iron Take Up Unit and 30mm Bore Insert

Name: RHP ST30A Cast Iron Take Up Unit and 30mm Bore Insert
Brand: RHP
SKU: ST30A-RHP
Price: 71.13 USD
Availability: InStock

$71.13 ex VAT

Sale Sold out

In stock

Price Break

10+ $47.64

20+ $44.96

30+ $44.43

40+ $43.89

50+ $43.36

75+ $42.82

100+ $40.15

200+ $39.61

250+ $39.08

500+ $38.54

1000+ $37.47

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	30mm
L	115.5mm
L1	71.7mm
L2	12.5mm
L3	16.5mm
L4	64.5mm
L5	43mm
H	101.5mm
H1	64.5mm
H2	37.5mm
H3	89mm
N	22.5mm
A	36.5mm
A1	30mm
A2	13.5mm
B1	31.21mm
s1	9.04mm
d1	40mm
Dynamic load	19500 N
Static load	11300 N
Rec max speed	5300 rpm
Weight	1.6 kg
Insert	<a href="advanced_search_result.php?keywords=1230-30G+insonly">1230-30G Click Here</a>
Casting group	4
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
