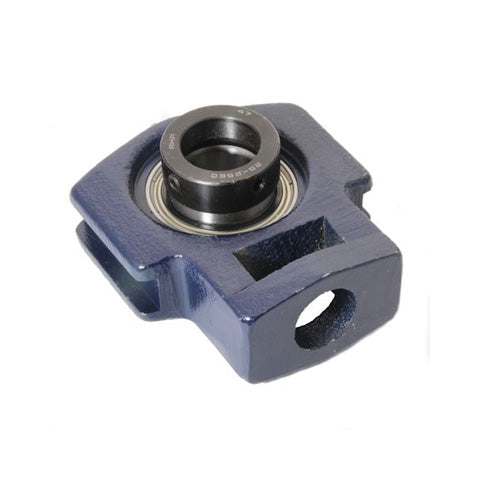

• RHP ST35DEC Cast Iron Take Up Unit and 35mm Bore Insert
1 1

SKU: ST35DEC-RHP

RHP ST35DEC Cast Iron Take Up Unit and 35mm Bore Insert

RHP ST35DEC Cast Iron Take Up Unit and 35mm Bore Insert
$94.59 ex VAT
$94.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.36
20+ $59.80
30+ $59.09
40+ $58.38
50+ $57.67
75+ $56.95
100+ $53.39
200+ $52.68
250+ $51.97
500+ $51.26
1000+ $49.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
ST
Technical
Bore 35mm
L 124mm
L1 75.5mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B3 51.18mm
s2 18.89mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
