SKU: ST40-RHP

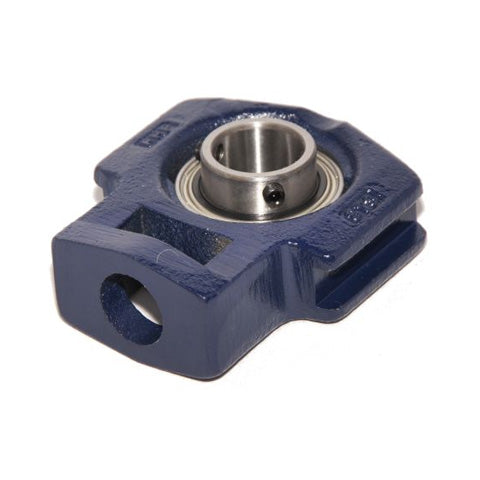

RHP ST40 Cast Iron Take Up Unit and 40mm Bore Insert

Name: RHP ST40 Cast Iron Take Up Unit and 40mm Bore Insert
Brand: RHP
SKU: ST40-RHP
Price: 95.40 USD
Availability: InStock

$95.40 ex VAT

Sale Sold out

In stock

Price Break

10+ $63.90

20+ $60.31

30+ $59.59

40+ $58.87

50+ $58.16

75+ $57.44

100+ $53.85

200+ $53.13

250+ $52.41

500+ $51.69

1000+ $50.26

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	40mm
L	143.5mm
L1	89.2mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
N	29mm
A	49.5mm
A1	37mm
A2	17.5mm
B	49.23mm
s	19.1mm
d1	52.7mm
Dynamic load	32500 N
Static load	19900 N
Rec max speed	4000 rpm
Weight	2.7 kg
Insert	<a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group	6
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
