SKU: ST45-RHP

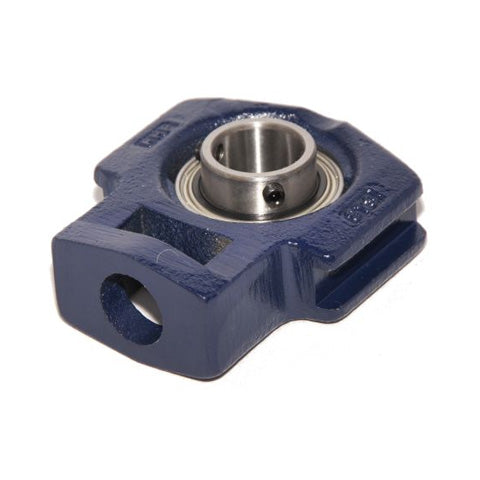

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
Regular price $107.58 ex VAT
Regular price Sale price $107.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $72.07
20+ $68.02
30+ $67.21
40+ $66.40
50+ $65.59
75+ $64.78
100+ $60.73
200+ $59.92
250+ $59.11
500+ $58.30
1000+ $56.68
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 45mm
L 147mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B 49.23mm
s 19.1mm
d1 57.3mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
