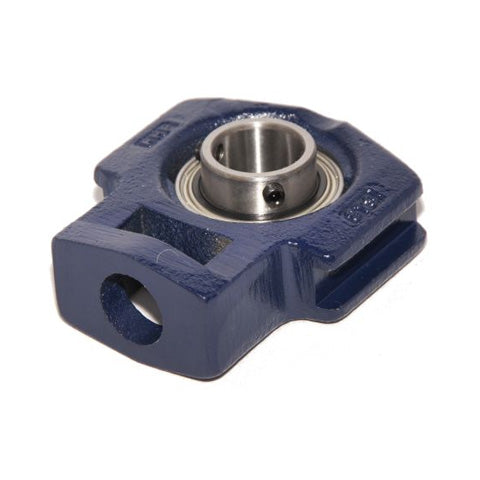

RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert

Name: RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert
Brand: RHP
SKU: ST55-RHP
Price: 160.55 USD
Availability: InStock

$160.55 ex VAT

Sale Sold out

In stock

Price Break

10+ $107.54

20+ $101.50

30+ $100.29

40+ $99.08

50+ $97.87

75+ $96.66

100+ $90.62

200+ $89.41

250+ $88.21

500+ $87.00

1000+ $84.58

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	55mm
L	182mm
L1	114mm
L2	19mm
L3	32mm
L4	97.5mm
L5	70mm
H	146mm
H1	101mm
H2	64mm
H3	130mm
N	35mm
A	63.5mm
A1	46.5mm
A2	27mm
B	55.55mm
s	22.28mm
d1	68.81mm
Dynamic load	43500 N
Static load	29200 N
Rec max speed	3100 rpm
Weight	4.2 kg
Insert	<a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a>
Casting group	9
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
