SKU: ST60-RHP

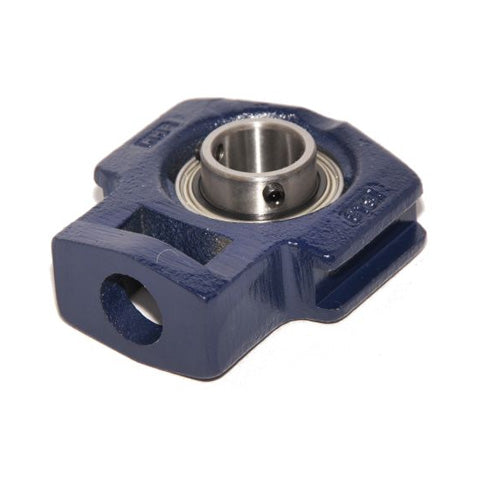

RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert

Name: RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert
Brand: RHP
SKU: ST60-RHP
Price: 201.24 USD
Availability: InStock

$201.24 ex VAT

Sale Sold out

In stock

Price Break

10+ $134.80

20+ $127.22

30+ $125.71

40+ $124.19

50+ $122.68

75+ $121.16

100+ $113.59

200+ $112.08

250+ $110.56

500+ $109.05

1000+ $106.02

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	60mm
L	192mm
L1	119mm
L2	19mm
L3	32mm
L4	97.5mm
L5	70mm
H	146mm
H1	101mm
H2	64mm
H3	130mm
N	35mm
A	63.5mm
A1	46.5mm
A2	27mm
B	65.07mm
s	25.45mm
d1	75.34mm
Dynamic load	48000 N
Static load	33000 N
Rec max speed	2800 rpm
Weight	5.4 kg
Insert	<a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a>
Casting group	10
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
