SKU: ST70-RHP

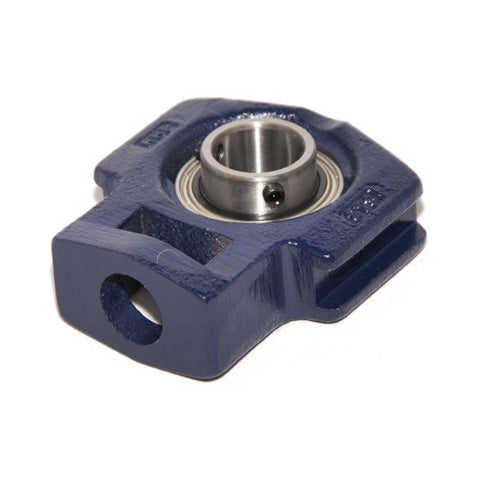

RHP ST70 Cast Iron Take Up Unit and 70mm Bore Insert
RHP ST70 Cast Iron Take Up Unit and 70mm Bore Insert
Regular price
$326.20
ex VAT
Regular price
Sale price
$326.20
ex VAT
In stock
Price Break
10+
$218.49
20+
$206.22
30+
$203.76
40+
$201.31
50+
$198.85
75+
$196.40
100+
$184.12
200+
$181.67
250+
$179.21
500+
$176.76
1000+
$171.85
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- ST
Technical
Technical
| Bore | 70mm |
|---|---|
| L | 222.5mm |
| L1 | 137.5mm |
| L2 | 21.5mm |
| L3 | 32mm |
| L4 | 120.5mm |
| L5 | 77mm |
| H | 166.5mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 150.8mm |
| N | 42mm |
| A | 70mm |
| A1 | 50.5mm |
| A2 | 27mm |
| B | 74.63mm |
| s | 30.23mm |
| d1 | 87mm |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 7.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-70G+insonly">1070-70G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
