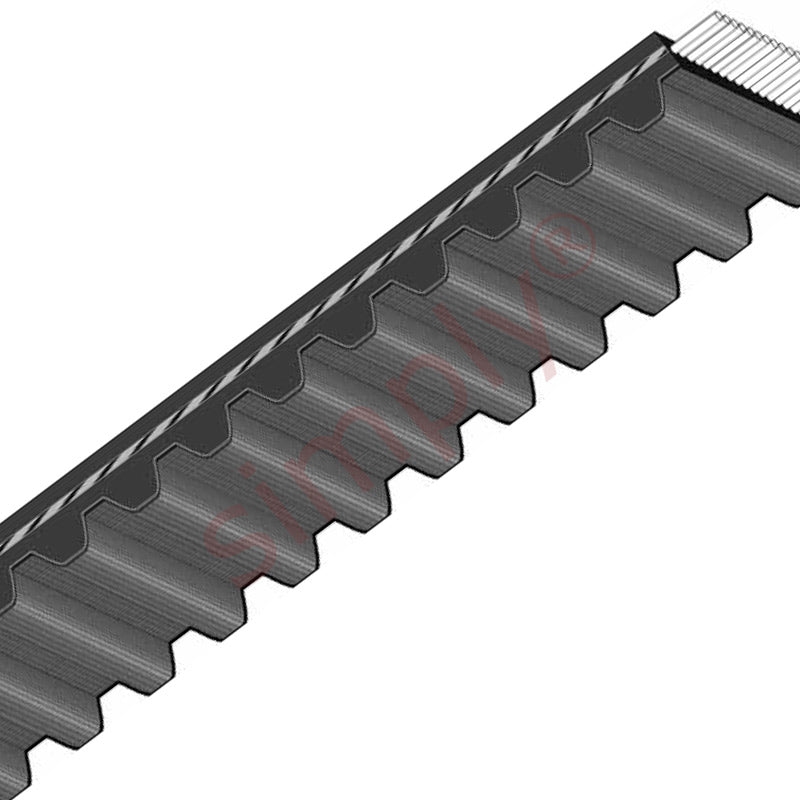

• STD1800-S8M-30-225 Major Brand Synchronous Belt 30mm Wide 8mm Pitch 225 Teeth Allow 2-3 Days
1 1

SKU: STD1800-S8M-30-225

STD1800-S8M-30-225 Major Brand Synchronous Belt 30mm Wide 8mm Pitch 225 Teeth Allow 2-3 Days

STD1800-S8M-30-225 Major Brand Synchronous Belt 30mm Wide 8mm Pitch 225 Teeth Allow 2-3 Days
$94.84 ex VAT
$94.84 ex VAT
Sale Sold out

Equivalent to: S8M-1800

In stock

Price Break
3+ $63.53
5+ $59.96
10+ $59.25
15+ $58.53
20+ $57.82
30+ $57.11
40+ $53.54
50+ $52.82
60+ $52.11
75+ $51.40
100+ $49.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
High Load STD Synchronous Drive Belts 8mm Pitch: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Synchronous belt drives become more economical, safer, and they render possible a synchronous transmission equivalent to chain and gear drives.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
Brand / Quality:
Major Brand - High Quality
Belt Width Approx:
30mm
Belt Depth Approx:
5.6mm
Belt Length Approx:
1800mm
Number of Teeth:
225
Technical
Pitch length 1800mm
Belt width 30mm
Number of teeth 225
Tooth pitch t 8mm
Belt thickness h<sub>s</sub> 5.6mm
Tooth height h<sub>t</sub> 3.4mm
