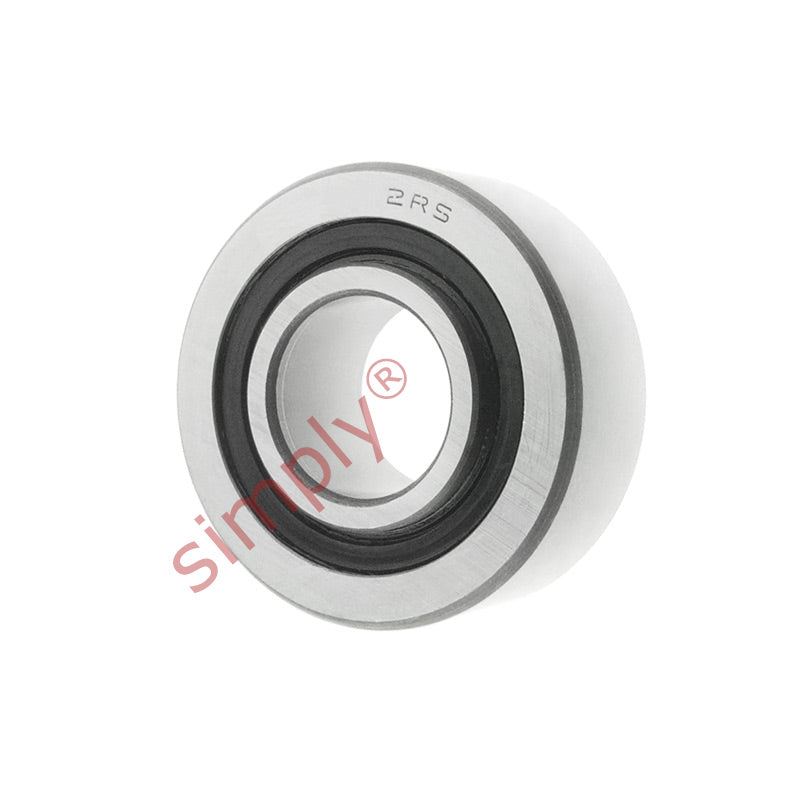

• Major Brand STO10 Support Roller Without Axial Guidance With Inner Sleeve 10x30x11.8mm
1 1

SKU: STO10-MB

Major Brand STO10 Support Roller Without Axial Guidance With Inner Sleeve 10x30x11.8mm

Major Brand STO10 Support Roller Without Axial Guidance With Inner Sleeve 10x30x11.8mm
$55.96 ex VAT
$55.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.49
19+ $35.38
29+ $34.96
39+ $34.54
49+ $34.12
74+ $33.70
99+ $31.59
199+ $31.17
249+ $30.75
499+ $30.33
999+ $29.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied with the inner ring, separable - easily mounted

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
10mm
Outside Diameter:
30mm
Width:
11.8mm
Technical
d 10mm
D 30mm
C 11.8mm
B 12mm
F 14mm
E 20mm
r min 0.3mm
r1r2 min 0.3mm
Speed rating 5500 rpm
Dynamic load 8250 N
Basic static load 8800 N
Fatigue load limit Pu 1040 N
Max radial dynamic force 8500 N
Max radial static force 12200 N
Weight 49 g
