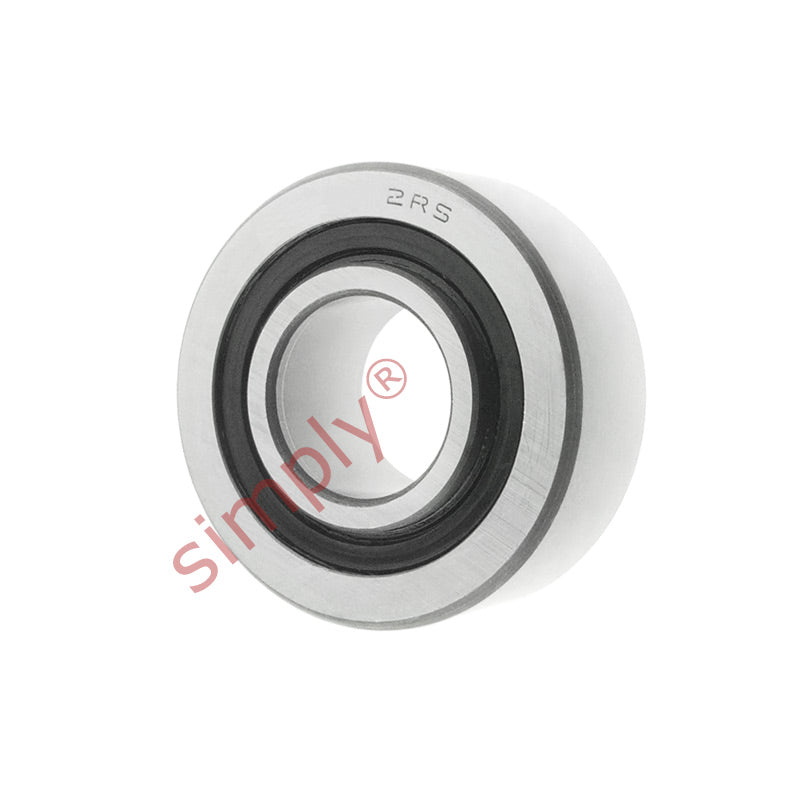

• Major Brand STO20 Support Roller Without Axial Guidance With Inner Sleeve 20x47x15.8mm
1 1

SKU: STO20-MB

Major Brand STO20 Support Roller Without Axial Guidance With Inner Sleeve 20x47x15.8mm

Major Brand STO20 Support Roller Without Axial Guidance With Inner Sleeve 20x47x15.8mm
$73.22 ex VAT
$73.22 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.05
19+ $46.29
29+ $45.74
39+ $45.19
49+ $44.64
74+ $44.09
99+ $41.33
199+ $40.78
249+ $40.23
499+ $39.68
999+ $38.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied with the inner ring, separable - easily mounted

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
15.8mm
Technical
d 20mm
D 47mm
C 15.8mm
B 16mm
F 25mm
E 32mm
r min 0.3mm
r1r2 min 0.3mm
Speed rating 2400 rpm
Dynamic load 16100 N
Basic static load 21200 N
Fatigue load limit Pu 2500 N
Max radial dynamic force 18600 N
Max radial static force 26500 N
Weight 150 g
