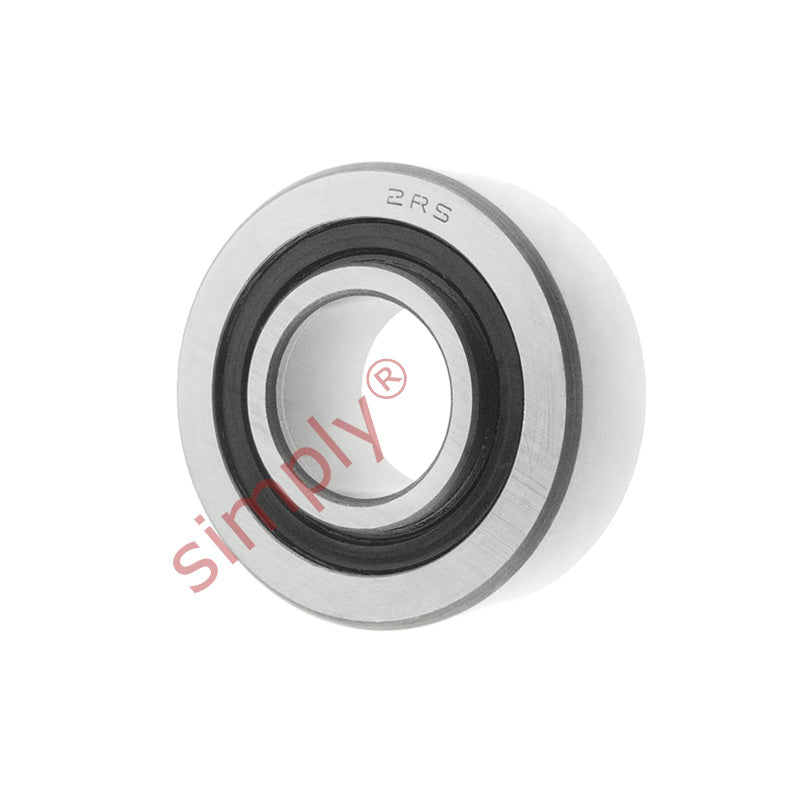

• STO25 Budget Support Roller not Axial Guidance and Inner Sleeve 25x52x15.8mm
1 1

SKU: STO25-EU

STO25 Budget Support Roller not Axial Guidance and Inner Sleeve 25x52x15.8mm

STO25 Budget Support Roller not Axial Guidance and Inner Sleeve 25x52x15.8mm
$33.54 ex VAT
$33.54 ex VAT
Sale Sold out

In stock

Price Break
10+ $22.46
19+ $21.20
29+ $20.95
39+ $20.70
49+ $20.44
74+ $20.19
99+ $18.93
199+ $18.68
249+ $18.43
499+ $18.17
999+ $17.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied with the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
15.8mm
Technical
D 52mm
C 15.8mm
d 25mm
B 16mm
F 30mm
E 37mm
r min 0.3mm
r1r2 min 0.3mm
Speed rating 1800 rpm
Dynamic load 16500 N
Basic static load 22800 N
Fatigue load limit Pu 2700 N
Max radial dynamic force 18000 N
Max radial static force 26000 N
Weight 180 g
