SKU: SUCFBL204FG1-SNR

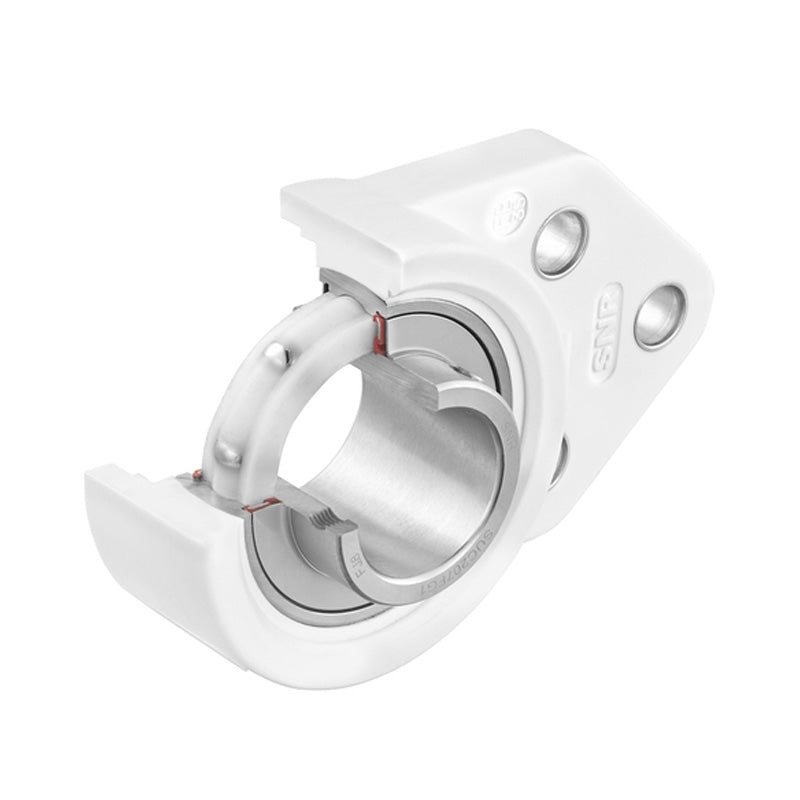

SNR SUCFBL204FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days

SNR SUCFBL204FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
Regular price $147.27 ex VAT
Regular price Sale price $147.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.71
4+ $105.28
9+ $103.06
19+ $99.74
49+ $97.52
99+ $91.98
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 20mm
A - Housing height 26.5mm
A1 - Housing foot height / flange height 11.4mm
A2 - Total height from mounting surface 33.7mm
B - Width of Inner Ring 31mm
d - Shaft diameter 20mm
e - Distance mounting surface to bearing centre 15.4mm
H - Housing length, width or diameter 108mm
H1 - Distance housing side to centre of bearing insert 76.2mm
J - Mounting holes distance 38.1mm
J3 - Distance mounting hole to bearing centre 42.9mm
J4 - Mounting hole distance 22.2mm
L - Housing width / diameter 63.5mm
L2 - Housing flange width 62mm
N - Mounting hole dimension 10.7mm
S - Distance front side/bearing centre 12.7mm
C - Dynamic load rating 12.8 kN
C0 - Static load rating 6.6 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.25kg
Recommended tightening torque for set screw 3.9 Nm
