SKU: SUCFBL206FG1-SNR

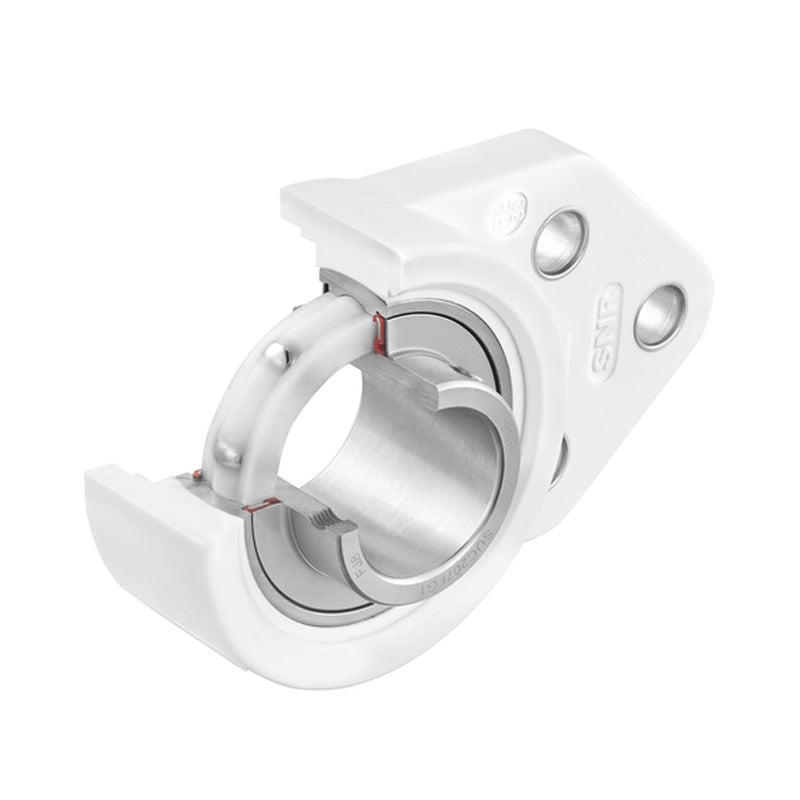

SNR SUCFBL206FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days

SNR SUCFBL206FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price $206.03 ex VAT
Regular price Sale price $206.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.49
4+ $147.29
9+ $144.19
19+ $139.54
49+ $136.44
99+ $128.68
499+ $108.53
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
A - Housing height 32mm
A1 - Housing foot height / flange height 13.3mm
A2 - Total height from mounting surface 41.5mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 30mm
e - Distance mounting surface to bearing centre 19.3mm
H - Housing length, width or diameter 138.5mm
H1 - Distance housing side to centre of bearing insert 96.5mm
J - Mounting holes distance 47.6mm
J3 - Distance mounting hole to bearing centre 52.4mm
J4 - Mounting hole distance 31.8mm
L - Housing width / diameter 83mm
L2 - Housing flange width 76mm
N - Mounting hole dimension 10.7mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 19.4 kN
C0 - Static load rating 11.2 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.47kg
Recommended tightening torque for set screw 3.9 Nm
