SKU: SUCFBL207FG1-SNR

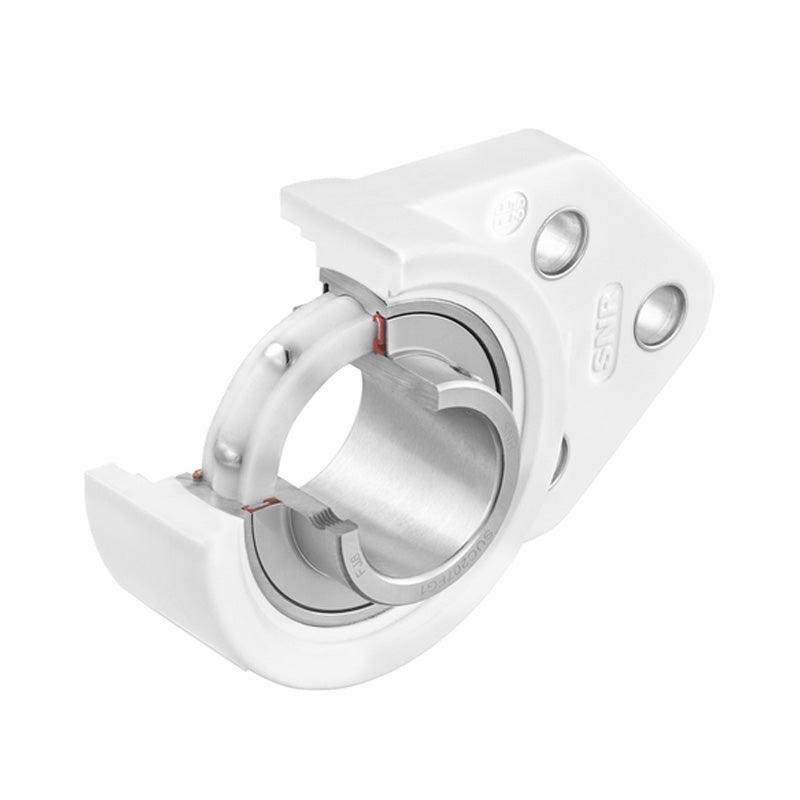

SNR SUCFBL207FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 35mm Bore Insert - Allow 2-3 Days
SNR SUCFBL207FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 35mm Bore Insert - Allow 2-3 Days
Regular price
$235.48
ex VAT
Regular price
Sale price
$235.48
ex VAT
In stock
Price Break
3+
$175.43
4+
$168.34
9+
$164.80
19+
$159.48
49+
$155.94
99+
$147.08
499+
$124.04
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SNR SUCFBL200FG1 Sentinel Three Bolt Bracket Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the LUBSOLID food-grade lubricant makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- -10 to 80 deg C
- Style:
- SUCFBL
- Colour:
- White
- Bolt Hole Centres:
- 50.8mm = 2 inch
Technical
Technical
| Bore | 35mm |
|---|---|
| A - Housing height | 36.5mm |
| A1 - Housing foot height / flange height | 16.1mm |
| A2 - Total height from mounting surface | 47.1mm |
| B - Width of Inner Ring | 42.9mm |
| d - Shaft diameter | 35mm |
| e - Distance mounting surface to bearing centre | 21.7mm |
| H - Housing length, width or diameter | 157mm |
| H1 - Distance housing side to centre of bearing insert | 109.5mm |
| J - Mounting holes distance | 50.8mm |
| J3 - Distance mounting hole to bearing centre | 60.3mm |
| J4 - Mounting hole distance | 31.8mm |
| L - Housing width / diameter | 95mm |
| L2 - Housing flange width | 89mm |
| N - Mounting hole dimension | 13.1mm |
| S - Distance front side/bearing centre | 17.5mm |
| C - Dynamic load rating | 25.6 kN |
| C0 - Static load rating | 15.3 kN |
| Operating temperature min. | -10 Deg C |
| Operating temperature max. | 80 Deg C |
| Mass | 0.62kg |
| Recommended tightening torque for set screw | 8.3 Nm |
