SKU: SUCFL.PL.202-10

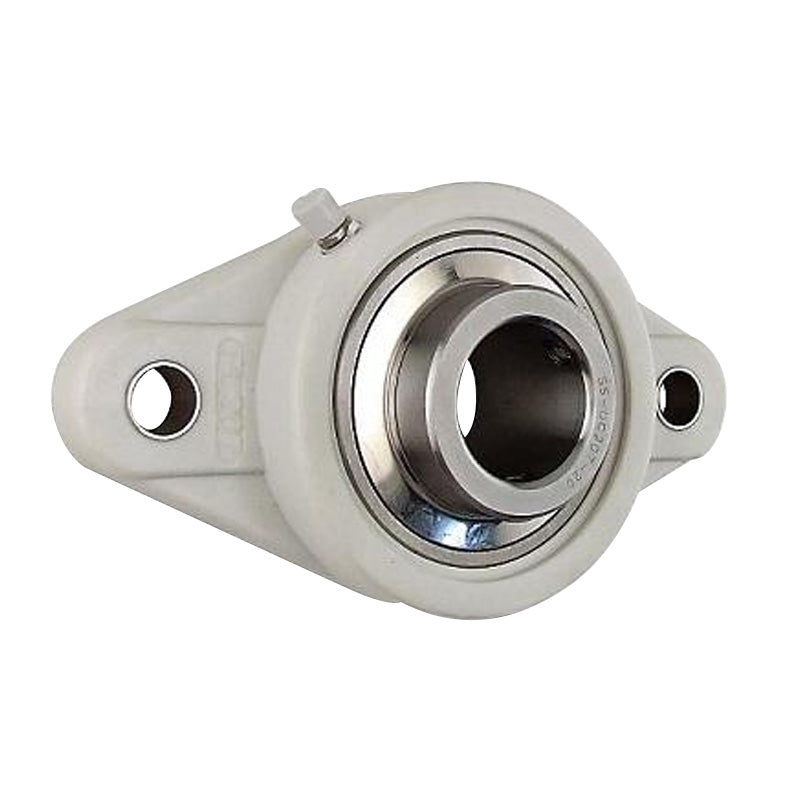

SUCFLPL202-10 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 5/8 inch Bore Stainless Insert - Allow 2-3 Days
SUCFLPL202-10 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 5/8 inch Bore Stainless Insert - Allow 2-3 Days
Regular price
$20.58
ex VAT
Regular price
Sale price
$20.58
ex VAT
Equivalent to: PSFT5/8CR
In stock
Price Break
3+
$15.34
4+
$14.72
9+
$14.41
19+
$13.94
49+
$13.63
99+
$12.86
499+
$10.84
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| a | 113mm |
| e | 90mm |
| i | 15mm |
| g | 11mm |
| L | 25.5mm |
| S | 12mm |
| b | 60mm |
| Z | 33.3mm |
| Bi | 31.0mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.49 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 8800 rpm |
