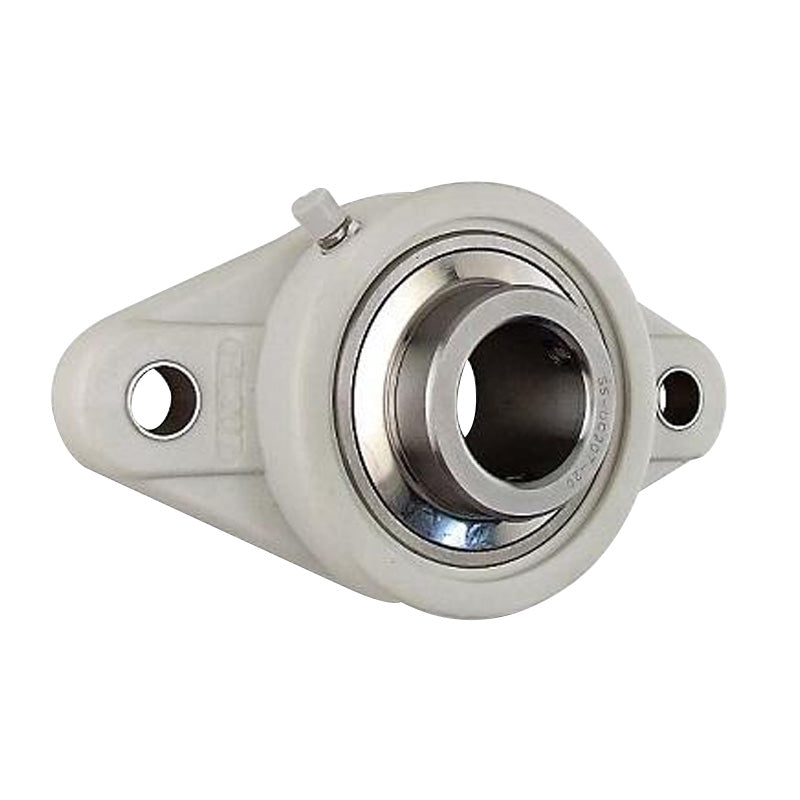

• SUCFLPL206-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
1 1

SKU: SUCFL.PL.206-20

SUCFLPL206-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert

SUCFLPL206-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
$34.35 ex VAT
$34.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.00
4+ $21.71
9+ $21.45
19+ $21.19
49+ $20.94
99+ $20.68
499+ $19.39
999+ $19.13
1999+ $18.87
2999+ $18.61
4999+ $18.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Temperature Range:
-35 to 102 deg C
Style:
SUCFL
Bolt Hole Centres:
117mm
Technical
d 1-1/4 inch
a 148mm
e 117mm
i 18mm
g 13mm
L 31mm
S 16mm
b 80mm
Z 40.2mm
Bi 38.1mm
n 15.9mm
Bolt 14mm
Weight 0.94 kg
Dynamic load 1520 kgf
Static load 1020 kgf
Temperature Range -35 to 102 deg C
