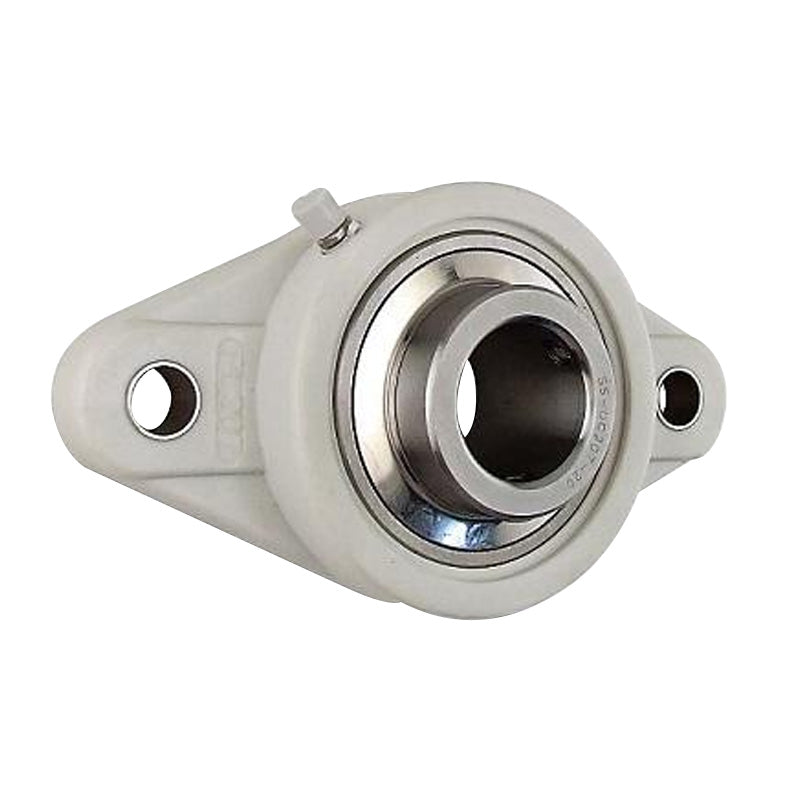

• SUCFLPL207-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
1 1

SKU: SUCFL.PL.207-20

SUCFLPL207-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert

SUCFLPL207-20 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
$86.10 ex VAT
$86.10 ex VAT
Sale Sold out

Equivalent to: PSFT1.1/4CR

In stock

Price Break
3+ $57.67
4+ $54.43
9+ $53.78
19+ $53.14
49+ $52.49
99+ $51.84
499+ $48.60
999+ $47.95
1999+ $47.30
2999+ $46.66
4999+ $45.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Temperature Range:
-35 to 102 deg C
Style:
SUCFL
Bolt Hole Centres:
130mm
Technical
d 1-1/4 inch
a 161mm
e 130mm
i 19mm
g 14mm
L 34mm
S 16mm
b 90mm
Z 44.4mm
Bi 42.9mm
n 17.5mm
Bolt 14mm
Weight 1.2 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4500 rpm
