• SUCFLPL209 Metric Two Bolt Oval Thermo Plastic Flange Housing with 45mm Bore Stainless Insert
1 1

SKU: SUCFL.PL.209

SUCFLPL209 Metric Two Bolt Oval Thermo Plastic Flange Housing with 45mm Bore Stainless Insert

SUCFLPL209 Metric Two Bolt Oval Thermo Plastic Flange Housing with 45mm Bore Stainless Insert
$121.56 ex VAT
$121.56 ex VAT
Sale Sold out

Equivalent to: PSFT45CR

In stock

Price Break
3+ $81.43
4+ $76.86
9+ $75.94
19+ $75.03
49+ $74.11
99+ $73.20
499+ $68.62
999+ $67.71
1999+ $66.79
2999+ $65.88
4999+ $64.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

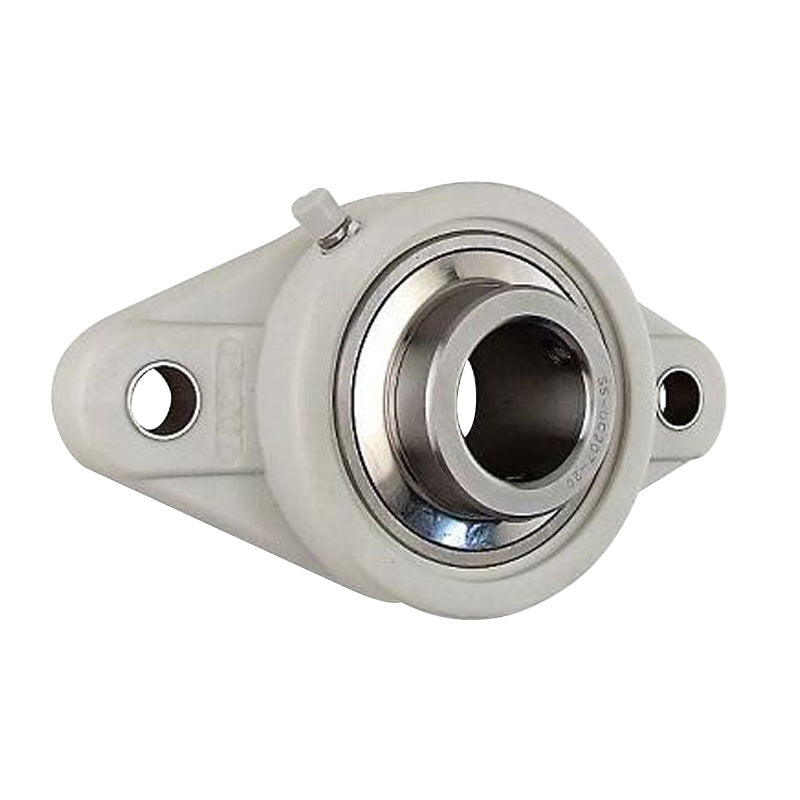

SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Temperature Range:
-35 to 102 deg C
Style:
SUCFL
Bolt Hole Centres:
148mm
Technical
d 45mm
a 188mm
e 148mm
i 22mm
g 15mm
L 38mm
S 19mm
b 108mm
Z 52.2mm
Bi 49.2mm
n 19.0mm
Bolt 16mm
Weight 1.9 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Temperature Range -35 to 102 deg C
Rec max speed 3700 rpm
